IPD031N06L3GATMA1 - Infineon

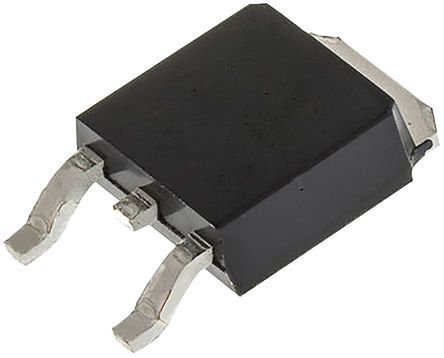

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPD031N06L3GATMA1
Manufacturer

Infineon
ChipWorker Part#

CW11883027
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 60V 100A
Documentation

Datasheet

IPD031N06L3GATMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPD031N06L3GATMA1 Specifications

Attribute	Attribute Value

Part Number	IPD031N06L3GATMA1
Manufacturer	Infineon
ChipWorker Part#	CW11883027
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Power Rating	167 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0025 Ω
Polarity	N-Channel
Power Dissipation	167 W
Threshold Voltage	1.7 V
Drain to Source Voltage (Vds)	60 V
Continuous Drain Current (Ids)	100A
Rise Time	78 ns
Input Capacitance (Ciss)	10000pF @30V(Vds)
Fall Time	13 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	167 W
	expand all
Size-Length	6.73 mm
Size-Width	6.223 mm
Size-Height	2.413 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IPD031N06L3 G is an OptiMOS™ N-channel Power MOSFET perfect choice for synchronous rectification in switched mode power supplies (SMPS). It can be used for a broad range of industrial applications including solar micro inverter and fast switching DC-to-DC converter.
Excellent gate charge x RDS (ON) product (FOM)
Very low ON-resistance RDS (ON)
Ideal for fast switching applications
MSL1 rated
Highest system efficiency
Increased power density
Very low voltage overshoot
Optimized technology for DC-to-DC converters
Normal level
100% Avalanche tested
Qualified according to JEDEC for target applications
Green device
