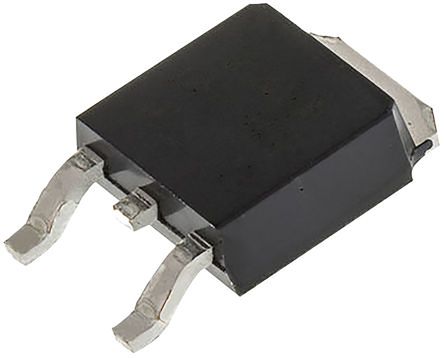

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPD036N04LGBTMA1
Manufacturer

Infineon
ChipWorker Part#

CW11232935
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 40V 90A
Documentation

Datasheet

IPD036N04LGBTMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPD036N04LGBTMA1 Specifications

Attribute	Attribute Value

Part Number	IPD036N04LGBTMA1
Manufacturer	Infineon
ChipWorker Part#	CW11232935
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Power Rating	94 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.003 Ω
Polarity	N-Channel
Power Dissipation	94 W
Threshold Voltage	1.2 V
Drain to Source Voltage (Vds)	40 V
Breakdown Voltage (Drain to Source)	40 V
Continuous Drain Current (Ids)	90A
Rise Time	5.4 ns
Input Capacitance (Ciss)	4700pF @20V(Vds)
Fall Time	6 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	94000 mW
	expand all
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IPD036N04L G is an OptiMOS™ 3 N-channel logic level Power Transistor features fast switching MOSFET for SMPS and very low on-resistance. OptiMOS™ 40V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops. In addition these devices can be used for a broad range of industrial applications including fast switching DC/DC converter.
