IPP60R190E6 - Infineon

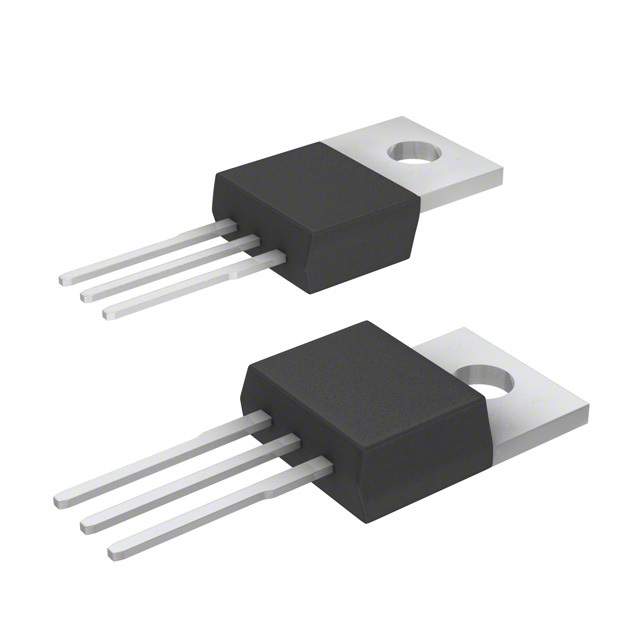

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPP60R190E6
Manufacturer

Infineon
ChipWorker Part#

CW62046486
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220 N-CH 650V 20.2A
Documentation

Datasheet

IPP60R190E6 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPP60R190E6 Specifications

Attribute	Attribute Value

Part Number	IPP60R190E6
Manufacturer	Infineon
ChipWorker Part#	CW62046486
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.17 Ω
Polarity	N-Channel
Power Dissipation	151 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	20.2A
Rise Time	10 ns
Input Capacitance (Ciss)	1400pF @100V(Vds)
Input Power (Max)	151 W
Fall Time	8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	151W (Tc)
	expand all
Size-Length	10 mm
Size-Width	4.4 mm
Size-Height	15.65 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

Description:
CoolMOS™ E6 combines Infineon"s experience as the leading superjunction MOSFET supplier with best-in-class innovation. The offered devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease-of-use. Extremely low switching and conduction losses make switching applications even more efficient, compact, lighter and cooler.
**600V CoolMOS™ E6 is replacement for 600V CoolMOS™ C3**
**650V CoolMOS™ E6 is replacement for 650V CoolMOS™ C3**
Summary of Features:
Easy control of switching behavior
Very high commutation ruggedness
Extremely low losses due to very low Figure of Merit (R DS(ON)*Q g) and E oss)
Easy to use
Better light load efficiency compared to C3
Outstanding reliability with proven CoolMOS™ quality combined with high body diode ruggedness
Better price performance in comparison to previous CoolMOS™ generations
More efficient, more compact, lighter and cooler
Benefits:
Improved power density
Improved reliability
General purpose part can be used in both soft and hard switching topologies
Better light load effciency
Improved effciency in hard switching applications
Improved ease-of-use
Reduces possible ringing due to pcb layout and package parasitic effects
Target Applications:
Consumer
Adapter
eMobility
PFC stages for server & telecom
SMPS
PC power
Solar
Lighting
