IPP80P03P4L04AKSA1 - Infineon

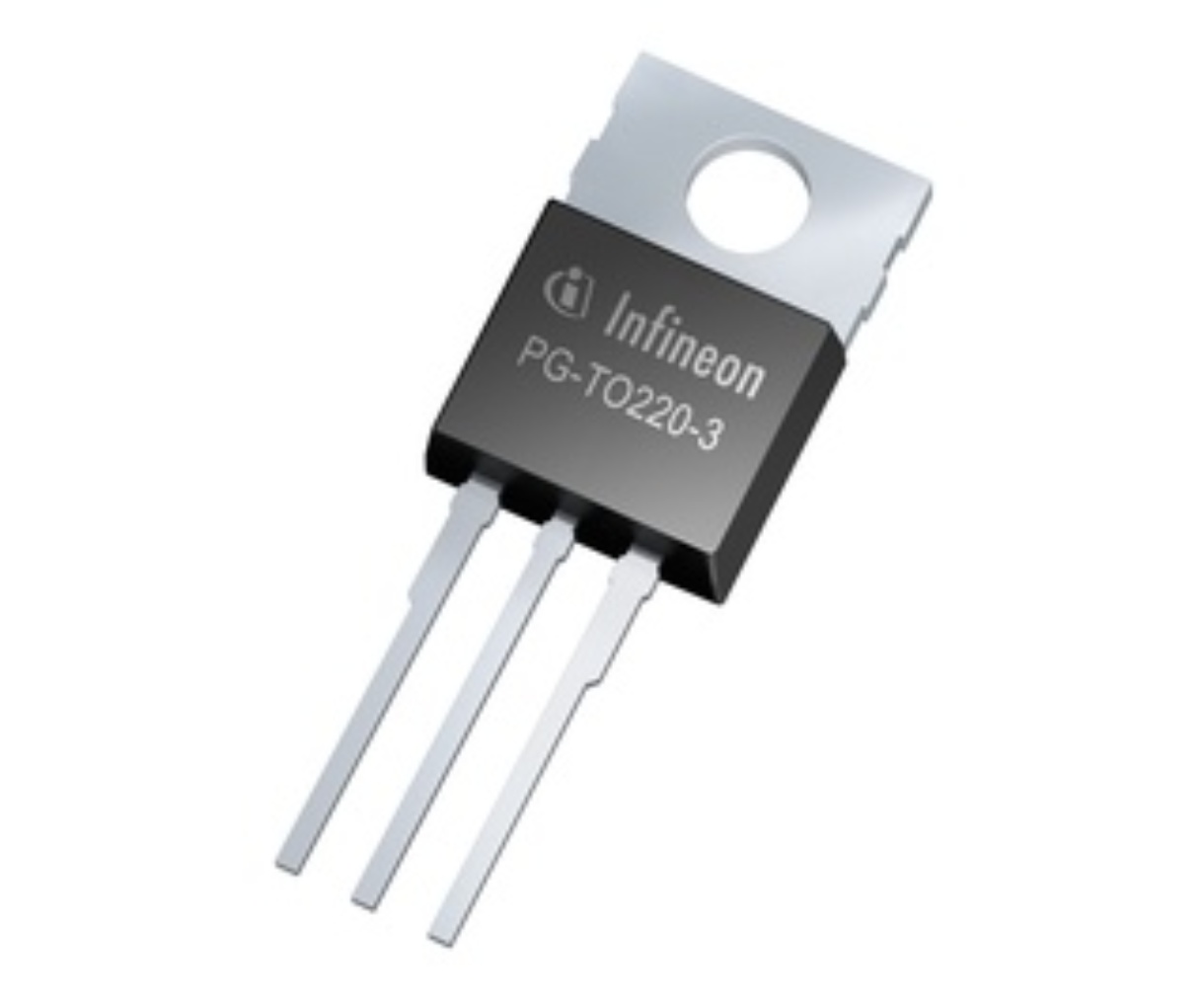

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPP80P03P4L04AKSA1
Manufacturer

Infineon
ChipWorker Part#

CW29940726
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220P-CH 30V 80A
Documentation

Datasheet

IPP80P03P4L04AKSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPP80P03P4L04AKSA1 Specifications

Attribute	Attribute Value

Part Number	IPP80P03P4L04AKSA1
Manufacturer	Infineon
ChipWorker Part#	CW29940726
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0037 Ω
Polarity	P-Channel
Power Dissipation	137 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	80A
Rise Time	11 ns
Input Capacitance (Ciss)	11300pF @25V(Vds)
Fall Time	40 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	137W (Tc)
	expand all
Size-Length	10 mm
Size-Width	4.4 mm
Size-Height	15.65 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IPP80P03P4L-04 is an OptiMOS™ P2 P-channel logic level enhancement mode Power Transistor features no charge pump required for high side drive, simple interface drive circuit and intended for reverse battery protection.
High current capability
Lowest switching and conduction power losses for highest thermal efficiency
AEC-Q101 Qualified
MSL1 up to 260°C peak reflow
