IPW60R037P7XKSA1 - Infineon

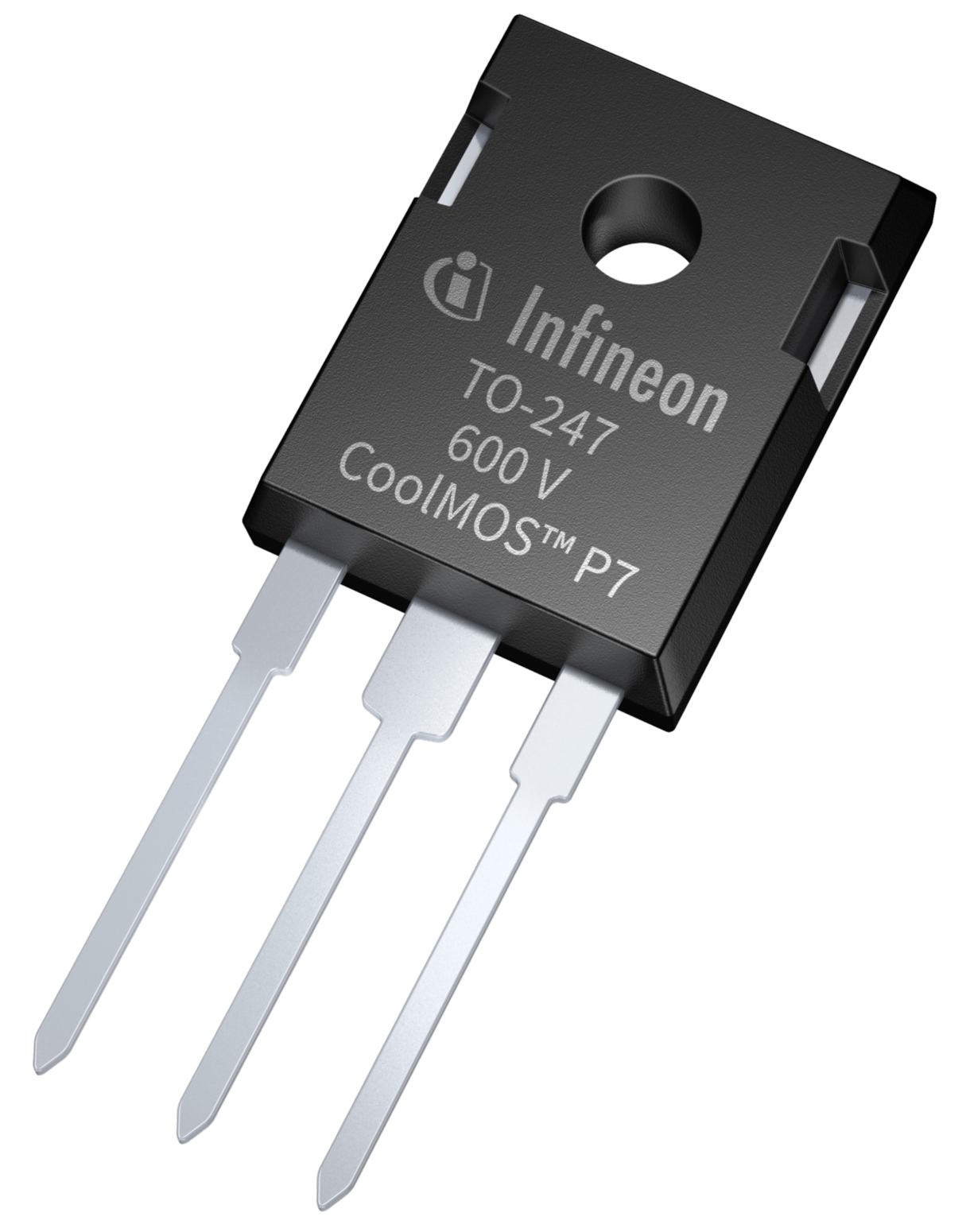

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IPW60R037P7XKSA1
Manufacturer

Infineon
ChipWorker Part#

CW11643396
Package

TO-247-3
Description

Trans MOSFET N-CH 600V 76A 3Pin(3+Tab) TO-247 Tube
Documentation

Datasheet

IPW60R037P7XKSA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IPW60R037P7XKSA1 Specifications

Attribute	Attribute Value

Part Number	IPW60R037P7XKSA1
Manufacturer	Infineon
ChipWorker Part#	CW11643396
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.03 Ω
Power Dissipation	255 W
Threshold Voltage	3.5 V
Drain to Source Voltage (Vds)	600 V
Rise Time	21 ns
Input Capacitance (Ciss)	5243pF @400V(Vds)
Fall Time	4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	255W (Tc)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status

Product Description

Description:
The 600V CoolMOS™ P7 is the successor to the 600V CoolMOS™ P6 series. It continues to balance the need for high efficiency against the ease-of-use in the design process. The best-in-class R onxA and the inherently low gate charge (Q G) of the CoolMOS™ 7th generation platform ensure its high efficiency.
Summary of Features:
**Efficiency**
600V P7 enables excellent FOM R DS(on)xE oss andR DS(on)xQ G
**Ease-of-use**
Integrated ESD diode from 180mN and above R DS(on)s
Integrated gate resistor R G
Rugged body diode
Wide portfolio in through hole and surface mount packages
Both standard grade and industrial grade parts are available
Benefits:
**Efficiency**
Excellent FOMs R DS(on)xQ G/R DS(on)xE oss enable higher efficiency
**Ease-of-use**
Ease-of-use in manufacturing environments by stopping ESD failures occurring
Integrated R G reduces MOSFET oscillation sensitivity
MOSFET is suitable for both hard and resonant switching topologies such as PFC and LLC
Excellent ruggedness during hard commutation of the body diode seen in LLC topology
Suitable for a wide variety of end applications and output powers
Parts available suitable for consumer and industrial applications
