IR2125STRPBF - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IR2125STRPBF
Manufacturer

Infineon
ChipWorker Part#

CW9733538
Category

FET Driver
Package

SOIC-16
Description

MOSFET DRVR 500V 3.3A 1Out Hi/Lo Side Non-Inv 16Pin SOIC W T/R
Documentation

Datasheet

IR2125STRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IR2125STRPBF Specifications

Attribute	Attribute Value

Part Number	IR2125STRPBF
Manufacturer	Infineon
ChipWorker Part#	CW9733538
Category	FET Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Rise/Fall Time	43ns, 26ns
Number of Outputs	1 Output
Output Voltage	12.18 V
Output Current	1 A
Number of Channels	1 Channel
Number of Positions	16 Position
Power Dissipation	1.25 W
Rise Time	43 ns
Fall Time	26 ns
Fall Time (Max)	35 ns
Fall Time (Max)	60 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1250 mW
Supply Voltage	0V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	12 V
	expand all
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

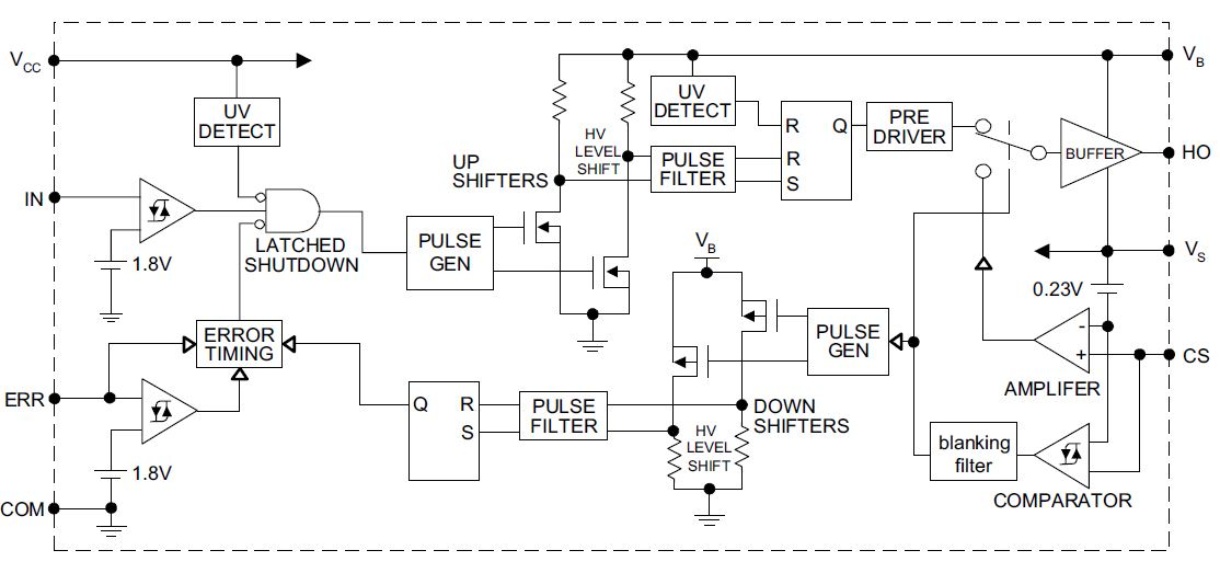

Summary of Features:
Floating channel designed for bootstrap operation
Fully operational to +500 V
Tolerant to negative transient voltage
dV/dt immune
Gate drive supply range from 12 to 18 V
Undervoltage lockout
Current detection and limiting loop to limit driven power transistor current
Error lead indicates fault conditions and programs shutdown time
Output in phase with input
2.5 V, 5 V and 15 V input logic compatible
