IR38063MTRPBF - Infineon

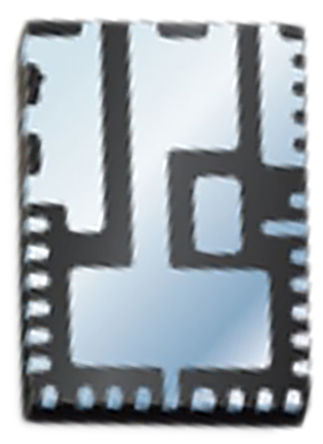

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IR38063MTRPBF
Manufacturer

Infineon
ChipWorker Part#

CW39949840
Category

Voltage Regulator
Package

QFN-34
Description

Conv DC-DC 5.5V to 21V Step Down Single-Out 0.5V to 18.375V 25A 34Pin QFN T/R
Documentation

Datasheet

IR38063MTRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}
Chipworker	{{noList.partNo}} {{noList.mfr}}	{{stockAvailability}} {{ search_item }}	{{moq}}	-	6 - 8 {{delivery_date}}

IR38063MTRPBF Specifications

Attribute	Attribute Value

Part Number	IR38063MTRPBF
Manufacturer	Infineon
ChipWorker Part#	CW39949840
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	34 Pin
Case/Package	QFN-34
Number of Outputs	1 Output
Output Voltage	0.5V ~ 18.375V
Output Current	25 A
Number of Positions	26 Position
Switching Frequency	400kHz ~ 1.5MHz
Input Voltage (Max)	21 V
Input Voltage (Min)	1.2 V
Output Voltage (Max)	18.38 V
Output Voltage (Min)	0.5 V
Output Current (Max)	25 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	5.5V ~ 21V
	expand all
Size-Length	5 mm
Size-Width	7 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Yes
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

IR38063 Series 21 V 25 A 1.65 MHz SMt Digital DC/DC Converter - PQFN-5x7
