IR4427PBF - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IR4427PBF
Manufacturer

Infineon
ChipWorker Part#

CW9771533
Category

FET Driver
Package

PDIP-8
Description

Buffer/Inverter Based MOSFET Driver, 3.3A, CMOS, PDIP8, LEAD FREE, MS-001AB, PLASTIC, DIP-8
Documentation

Datasheet

IR4427PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IR4427PBF Specifications

Attribute	Attribute Value

Part Number	IR4427PBF
Manufacturer	Infineon
ChipWorker Part#	CW9771533
Category	FET Driver
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Rise/Fall Time	15ns, 10ns
Number of Outputs	2 Output
Output Voltage	6.20 V
Output Current	2.3 A
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	1 W
Rise Time	35 ns
Fall Time	25 ns
Fall Time (Max)	25 ns
Fall Time (Max)	35 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	6V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	6 V
	expand all
Size-Length	10.92 mm
Size-Width	7.11 mm
Size-Height	5.33 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

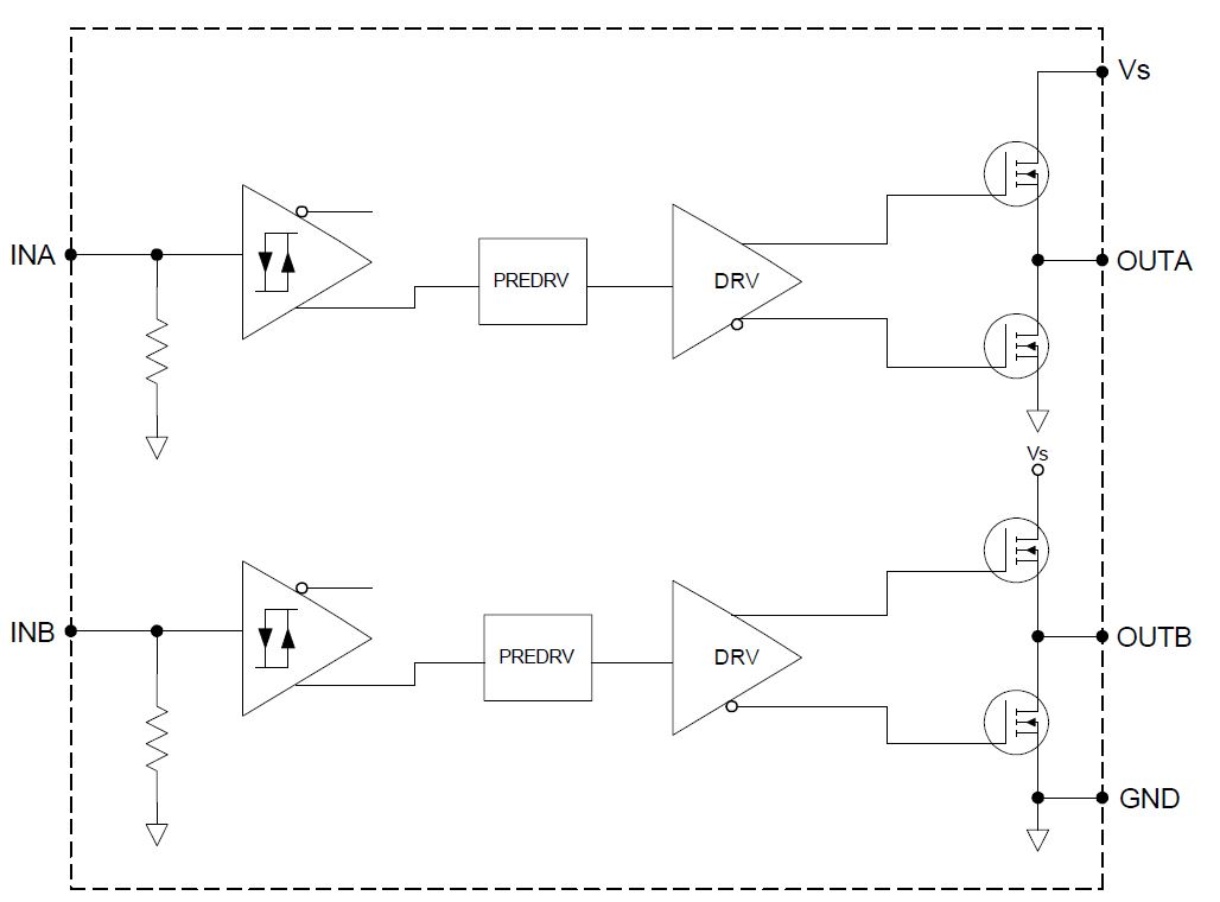

The IR4427PBF is a low voltage high speed power MOSFET and IGBT dual low Side Driver with proprietary latch immune CMOS technologies which enables ruggedized monolithic construction. Logic inputs are compatible with standard CMOS or LSTTL outputs. The output driver features a high pulse current buffer stage designed for minimum driver cross-conduction. Propagation delays between two channels are matched.
CMOS Schmitt-triggered inputs
Matched propagation delay for both channels
Outputs in phase with inputs
