IRF1405PBF - Infineon

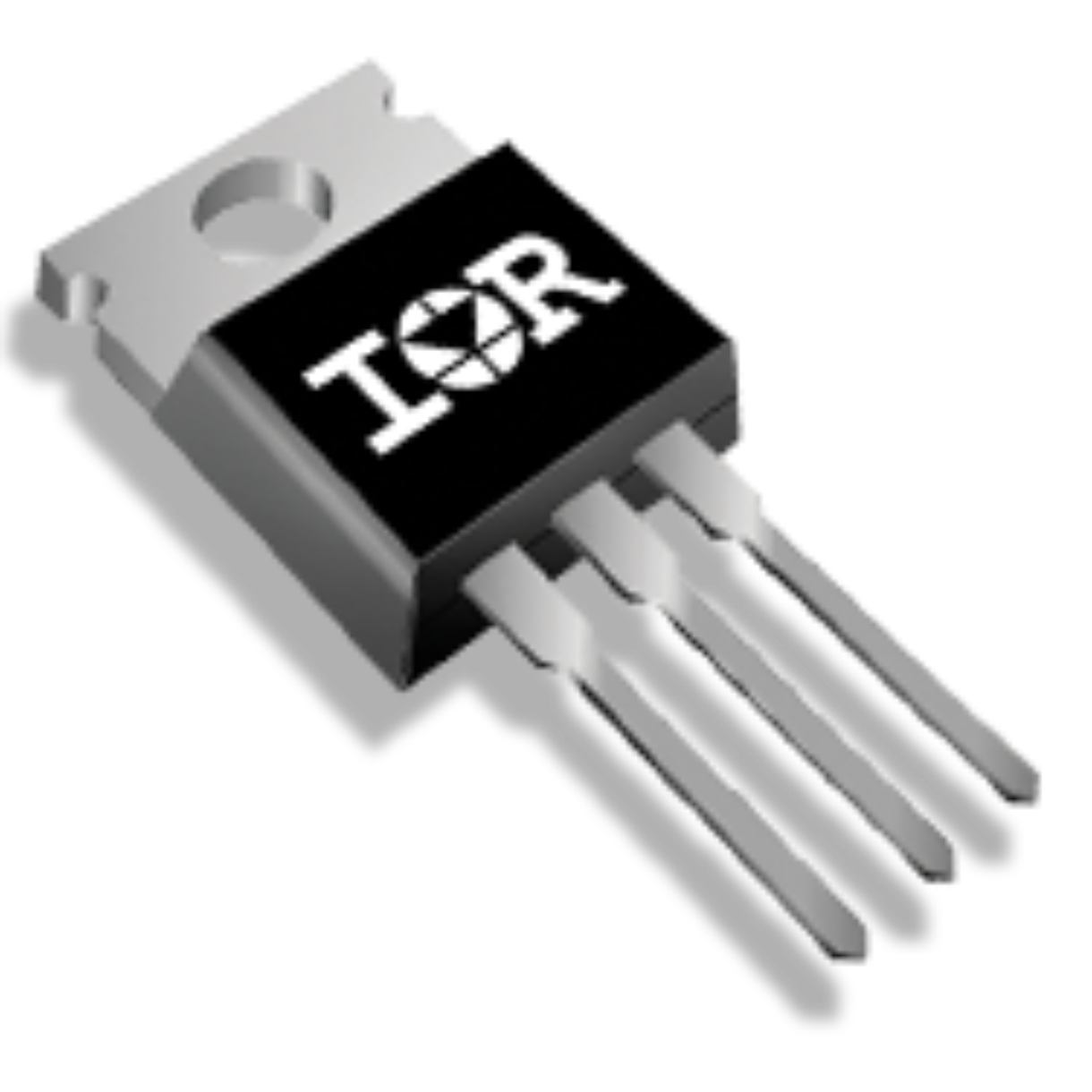

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF1405PBF
Manufacturer

Infineon
ChipWorker Part#

CW2576233
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220AB N-CH 55V 169A
Documentation

Datasheet

IRF1405PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF1405PBF Specifications

Attribute	Attribute Value

Part Number	IRF1405PBF
Manufacturer	Infineon
ChipWorker Part#	CW2576233
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Rating	200 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0053 Ω
Polarity	N-CH
Power Dissipation	330 W
Threshold Voltage	4 V
Input Capacitance	5480 pF
Drain to Source Voltage (Vds)	55 V
Breakdown Voltage (Drain to Source)	55 V
Continuous Drain Current (Ids)	169A
Rise Time	190 ns
Input Capacitance (Ciss)	5480pF @25V(Vds)
Input Power (Max)	330 W
Fall Time	110 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	330W (Tc)
	expand all
Size-Length	10.67 mm
Size-Height	8.77 mm
Material	Silicon
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The IRF1405PBF is a 55V N-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using advanced planar technology. Suitable for anti-lock braking system, electric power steering, wiper control and climate control applications.
175°C Operating temperature
Repetitive avalanche allowed up to Tjmax
Dynamic dV/dt rating

expand all
