IRF3305 - International Rectifier

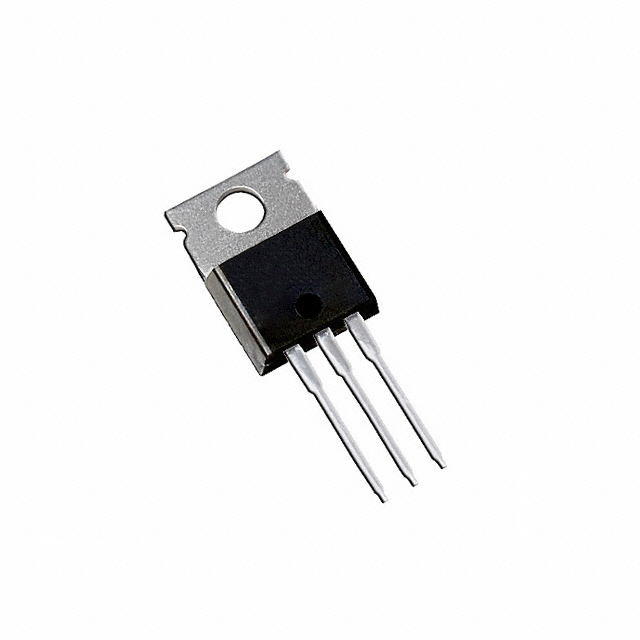

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF3305
Manufacturer

International Rectifier
ChipWorker Part#

CW300262121
Category

MOSFET, MOSFET Transistor
Package

TO-220
Description

MOSFET N-CH 55V 75A TO-220AB
Documentation

Datasheet

IRF3305 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF3305 Specifications

Attribute	Attribute Value

Part Number	IRF3305
Manufacturer	International Rectifier
ChipWorker Part#	CW300262121
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Case/Package	TO-220
Voltage Rating (DC)	55.0 V
Current Rating	75.0 A
Drain to Source Resistance (on) (Rds)	8.00 mΩ (max)
Polarity	N-Channel
Power Dissipation	330 W
Drain to Source Voltage (Vds)	55.0 V
Breakdown Voltage (Drain to Source)	55.0V (min)
Continuous Drain Current (Ids)	75.0 A
Rise Time	88.0 ns
	expand all
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

VDSS= 55V
RDS(on)= 8.0mΩ
ID= 75A

expand all
