IRF8734PBF - Infineon

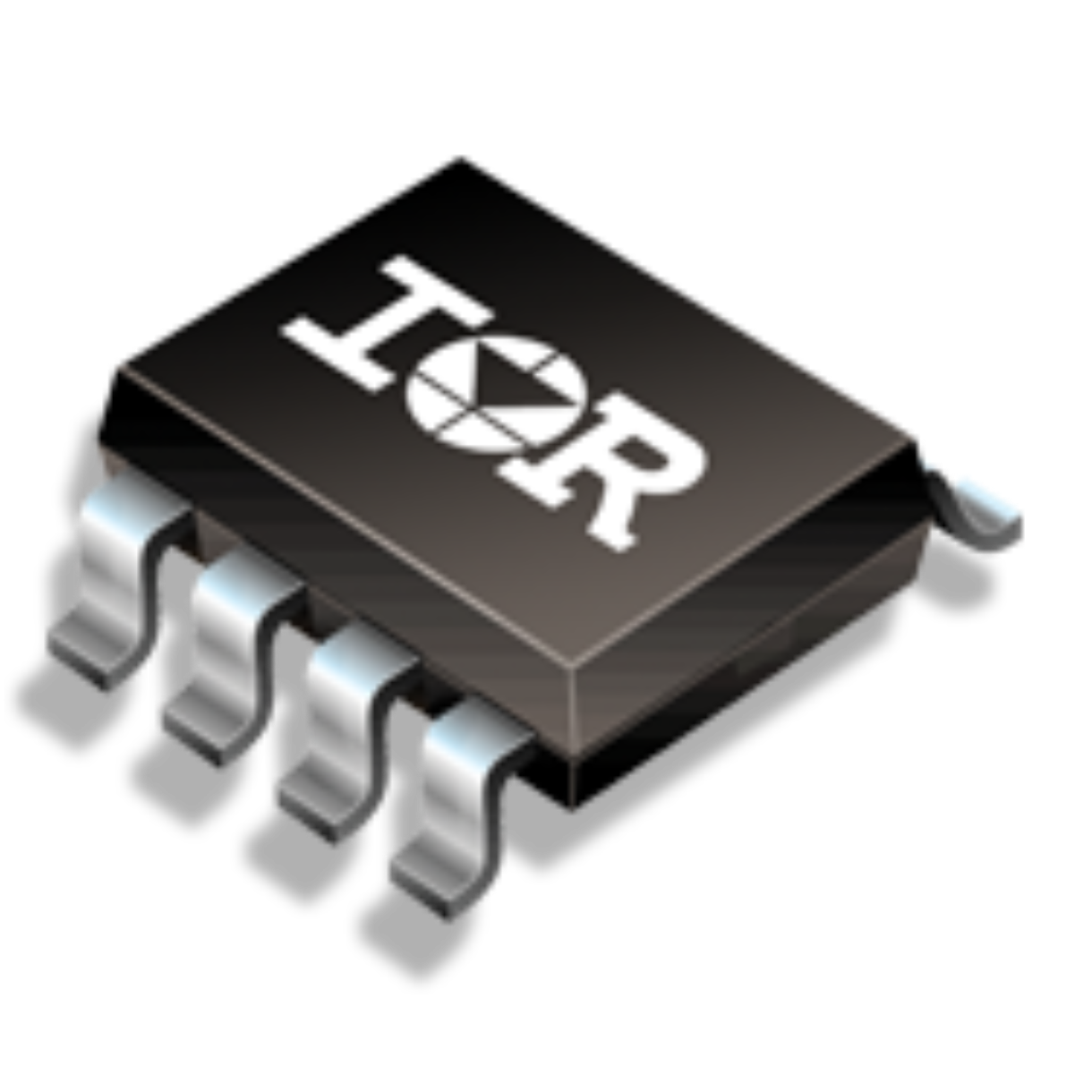

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF8734PBF
Manufacturer

Infineon
ChipWorker Part#

CW29666793
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC N-CH 30V 21A
Documentation

Datasheet

IRF8734PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF8734PBF Specifications

Attribute	Attribute Value

Part Number	IRF8734PBF
Manufacturer	Infineon
ChipWorker Part#	CW29666793
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2.5 W
Polarity	N-Channel
Power Dissipation	2.5 W
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	21A
Rise Time	16 ns
Input Capacitance (Ciss)	3175pF @15V(Vds)
Fall Time	8 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta)
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
