IRF9410PBF - Infineon

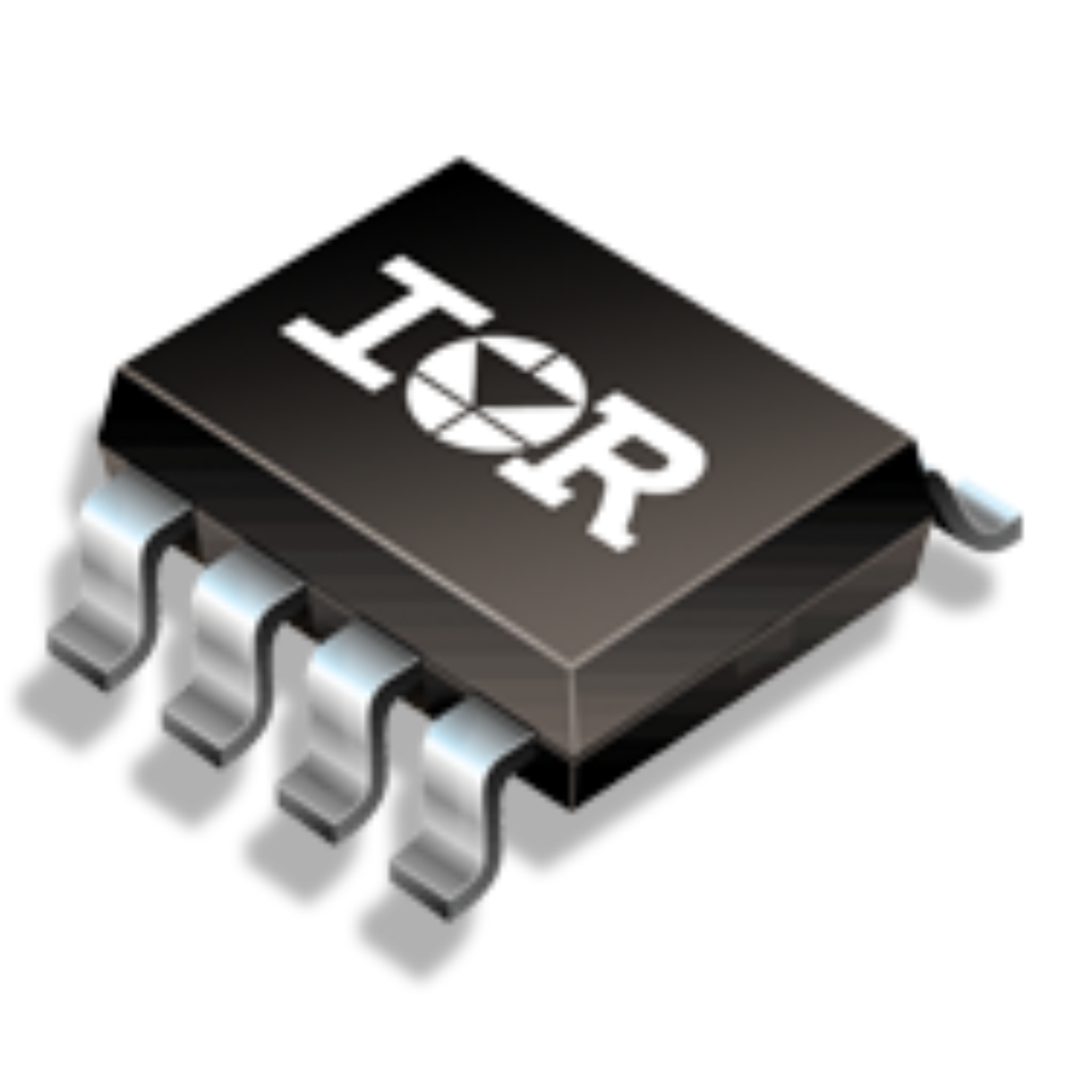

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF9410PBF
Manufacturer

Infineon
ChipWorker Part#

CW11652996
Category

MOSFET, MOSFET Transistor
Package

SOIC-8
Description

SOIC N-CH 30V 7A
Documentation

Datasheet

IRF9410PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF9410PBF Specifications

Attribute	Attribute Value

Part Number	IRF9410PBF
Manufacturer	Infineon
ChipWorker Part#	CW11652996
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	2.5 W
Number of Channels	1 Channel
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	0.03 Ω
Polarity	N-Channel
Power Dissipation	2.5 W
Threshold Voltage	1 V
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30 V
Continuous Drain Current (Ids)	7A
Rise Time	8.3 ns
Input Capacitance (Ciss)	550pF @25V(Vds)
Input Power (Max)	2.5 W
Fall Time	17 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2.5W (Ta)
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRF9410PBF is a 30V single N-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using advanced planar technology.
Low gate charge and switching losses
Fully avalanche rated
Surface mount
