IRF9640STRLPBF - VISHAY

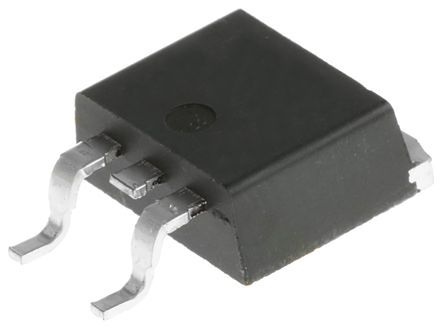

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRF9640STRLPBF
Manufacturer

VISHAY
ChipWorker Part#

CW7510746
Category

MOSFET, MOSFET Transistor
Package

TO-263-3
Description

TO-263-3P-CH 200V 11A 500mΩ
Documentation

Datasheet

IRF9640STRLPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRF9640STRLPBF Specifications

Attribute	Attribute Value

Part Number	IRF9640STRLPBF
Manufacturer	VISHAY
ChipWorker Part#	CW7510746
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.5 Ω
Polarity	P-Channel
Power Dissipation	3 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	200 V
Continuous Drain Current (Ids)	-11.0 A
Rise Time	43 ns
Input Capacitance (Ciss)	1200pF @25V(Vds)
Input Power (Max)	3 W
Fall Time	38 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	125 W
	expand all
Size-Length	10.67 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
Minimum Packing Quantity	800
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free

Product Description

The IRF9640STRLPBF is a third generation P-channel enhancement-mode Power MOSFET comes with the best combination of fast switching, ruggedized device design and low ON-resistance. The D2PAK is a surface-mount power package capable of accommodating die size up to HEX-4. It provides the highest power capability in any existing surface-mount package. The D2PAK is suitable for high current applications because of its low internal connection resistance and can dissipate up to 2W in a typical surface-mount application.
Dynamic dV/dt rating
Repetitive avalanche rated
Ease of paralleling
Surface-mount
Halogen-free

expand all
