IRFB9N60APBF - VISHAY

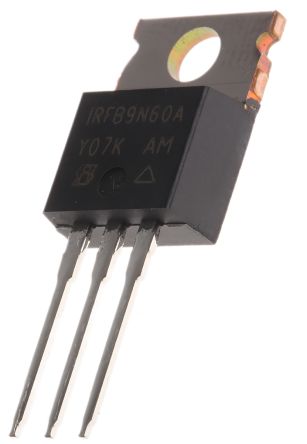

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFB9N60APBF
Manufacturer

VISHAY
ChipWorker Part#

CW11486804
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220-3 N-CH 600V 9.2A 750mΩ
Documentation

Datasheet

IRFB9N60APBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFB9N60APBF Specifications

Attribute	Attribute Value

Part Number	IRFB9N60APBF
Manufacturer	VISHAY
ChipWorker Part#	CW11486804
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	600 V
Current Rating	9.20 A
Power Rating	170 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.75 Ω
Polarity	N-Channel
Power Dissipation	170 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	9.20 A
Rise Time	25 ns
Input Capacitance (Ciss)	1400pF @25V(Vds)
Input Power (Max)	170 W
Fall Time	22 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	170 W
	expand all
Size-Length	10.41 mm
Size-Width	4.7 mm
Size-Height	9.01 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
Minimum Packing Quantity	50
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

The IRFB9N60APBF is a 600V N-channel enhancement-mode Power MOSFET with single configuration. It is suitable for SMPS, uninterruptible power supply and high speed power switching applications.
