IRFI530NPBF - Infineon

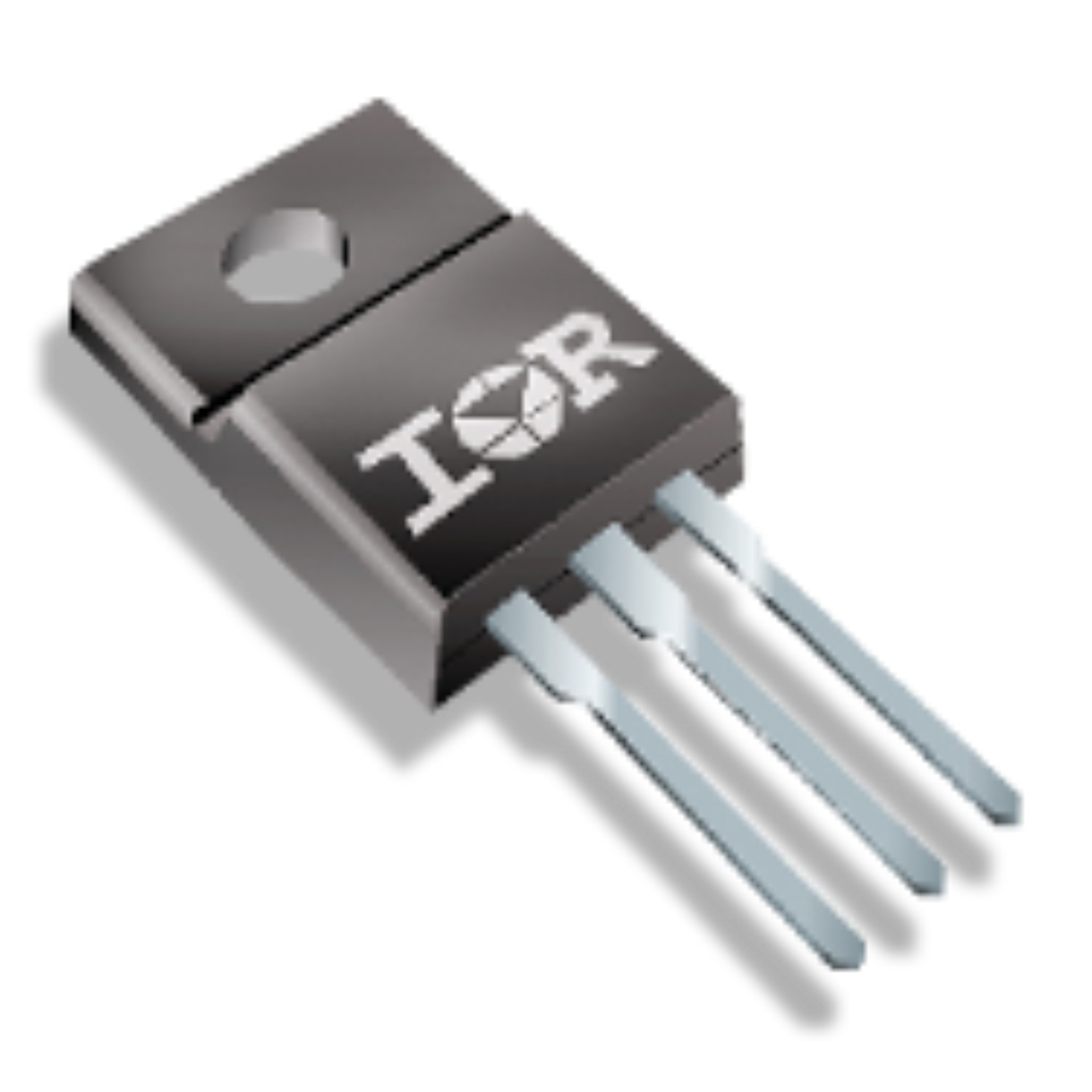

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFI530NPBF
Manufacturer

Infineon
ChipWorker Part#

CW5624489
Category

MOSFET, MOSFET Transistor
Package

TO-220-3
Description

TO-220FP N-CH 100V 12A
Documentation

Datasheet

IRFI530NPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFI530NPBF Specifications

Attribute	Attribute Value

Part Number	IRFI530NPBF
Manufacturer	Infineon
ChipWorker Part#	CW5624489
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Power Rating	33 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.11 Ω
Polarity	N-Channel
Power Dissipation	33 W
Threshold Voltage	4 V
Input Capacitance	640 pF
Drain to Source Voltage (Vds)	100 V
Continuous Drain Current (Ids)	12A
Rise Time	27 ns
Input Capacitance (Ciss)	640pF @25V(Vds)
Fall Time	25 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	41W (Tc)
	expand all
Size-Length	10.75 mm
Size-Width	4.83 mm
Size-Height	9.8 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRFI530NPBF is a HEXFET® fifth generation N-channel Power MOSFET utilizes advanced processing techniques to achieve extremely low ON-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design, provides an extremely efficient and reliable operation. The package eliminates the need for additional insulating hardware. The moulding compound used provides a high isolation capability and a low thermal resistance between the tab and external heat sink. This isolation is equivalent to using a 100 micron mica barrier. The package is mounted to a heat sink using a single clip or by a single screw fixing.
Advanced process technology
Isolated package
Fully avalanche rating
Low static drain-to-source ON-resistance
Dynamic dV/dt rating
2.5kVRMS High voltage isolation
4.8mm Sink to lead creepage distance
