IRFL024ZPBF - International Rectifier

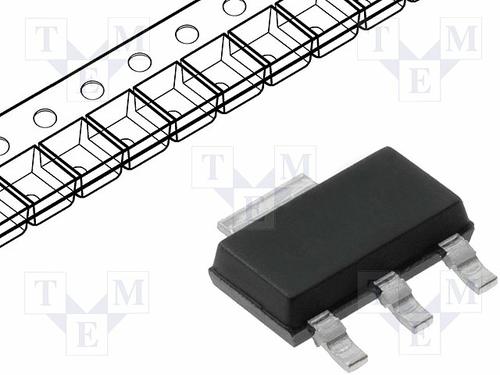

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFL024ZPBF
Manufacturer

International Rectifier
ChipWorker Part#

CW127797946
Category

MOSFET, MOSFET Transistor
Package

TO-261-4
Description

MOSFET, Power; N-Ch; VDSS 55V; RDS(ON) 46.2 Milliohms; ID 5.1A; SOT-223; PD 1W; VF 1.3V
Documentation

Datasheet

IRFL024ZPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFL024ZPBF Specifications

Attribute	Attribute Value

Part Number	IRFL024ZPBF
Manufacturer	International Rectifier
ChipWorker Part#	CW127797946
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-261-4
Voltage Rating (DC)	55.0 V
Current Rating	5.10 A
Drain to Source Resistance (on) (Rds)	57.5 mΩ
Polarity	N-Channel
Power Dissipation	2.8 W
Part Family	IRFL024Z
Input Capacitance	340pF @25V
Drain to Source Voltage (Vds)	55 V
Breakdown Voltage (Drain to Source)	55 V
Continuous Drain Current (Ids)	5.10 A
Rise Time	21.0 ns
Input Capacitance (Ciss)	340pF @25V(Vds)
Input Power (Max)	1 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	expand all
Size-Length	6.7 mm
Size-Height	1.45 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

**N-Channel Power MOSFET up to 7A, Infineon**
Infineon"s range of diskrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages and form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.
