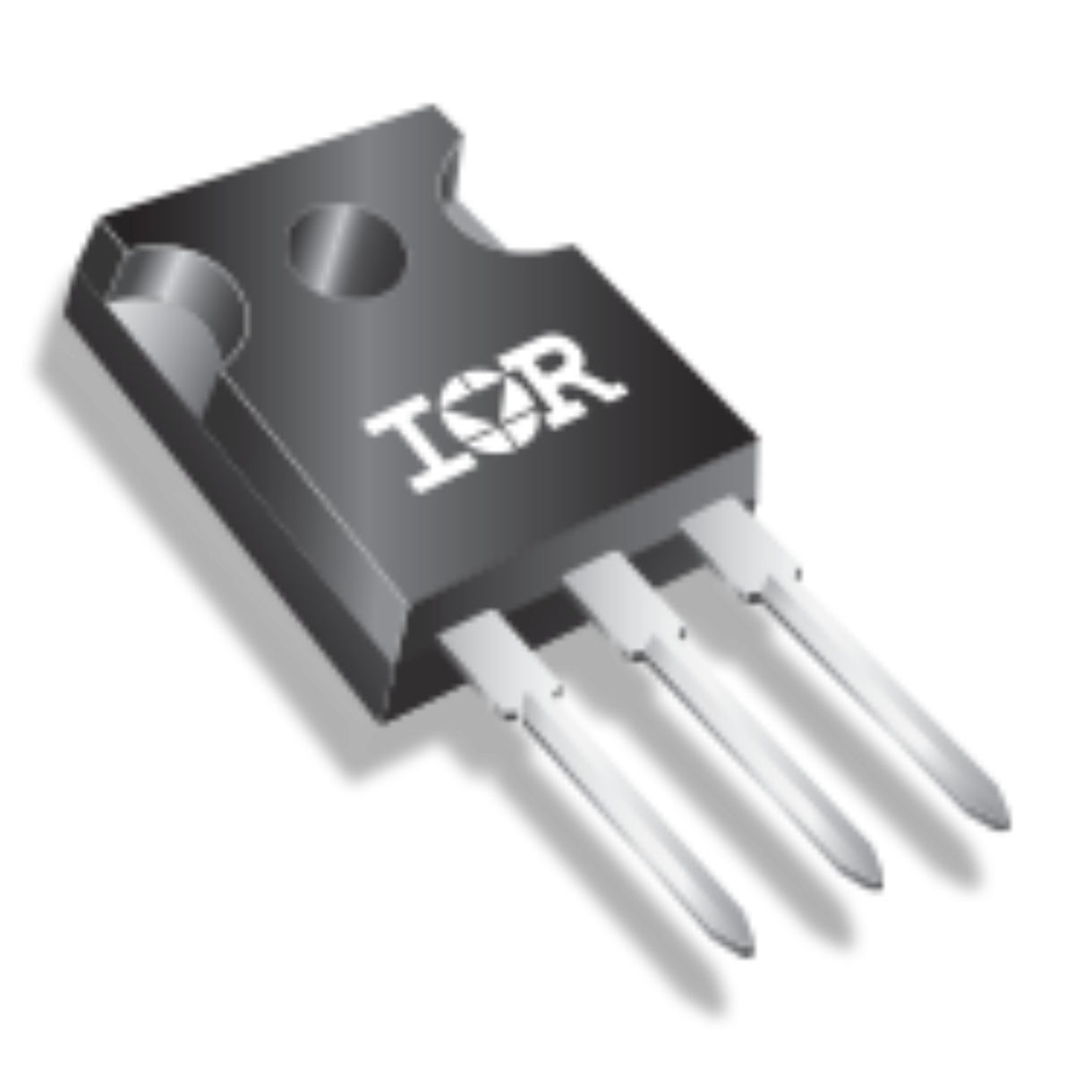

IRFP3077PBF - Infineon

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFP3077PBF
Manufacturer

Infineon
ChipWorker Part#

CW4041427
Category

MOSFET, MOSFET Transistor
Package

TO-247-3
Description

TO-247AC N-CH 60V 160A
Documentation

Datasheet

IRFP3077PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFP3077PBF Specifications

Attribute	Attribute Value

Part Number	IRFP3077PBF
Manufacturer	Infineon
ChipWorker Part#	CW4041427
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Power Rating	340 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0028 Ω
Polarity	N-Channel
Power Dissipation	340 W
Threshold Voltage	4 V
Input Capacitance	9400 pF
Drain to Source Voltage (Vds)	75 V
Continuous Drain Current (Ids)	160A
Rise Time	76 ns
Input Capacitance (Ciss)	9400pF @50V(Vds)
Fall Time	77 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	340W (Tc)
	expand all
Size-Length	15.87 mm
Size-Width	5.31 mm
Size-Height	20.7 mm
Material	Silicon
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRFP3077PBF is a HEXFET® N-channel Power MOSFET offers improved gate, avalanche and dynamic dV/dt ruggedness. It is suitable for high efficiency synchronous rectification in SMPS, hard switched and high frequency circuits.
Fully characterized capacitance and avalanche SOA
Enhanced body diode dV/dt and di/dt capability
