IRFR3411PBF - Infineon

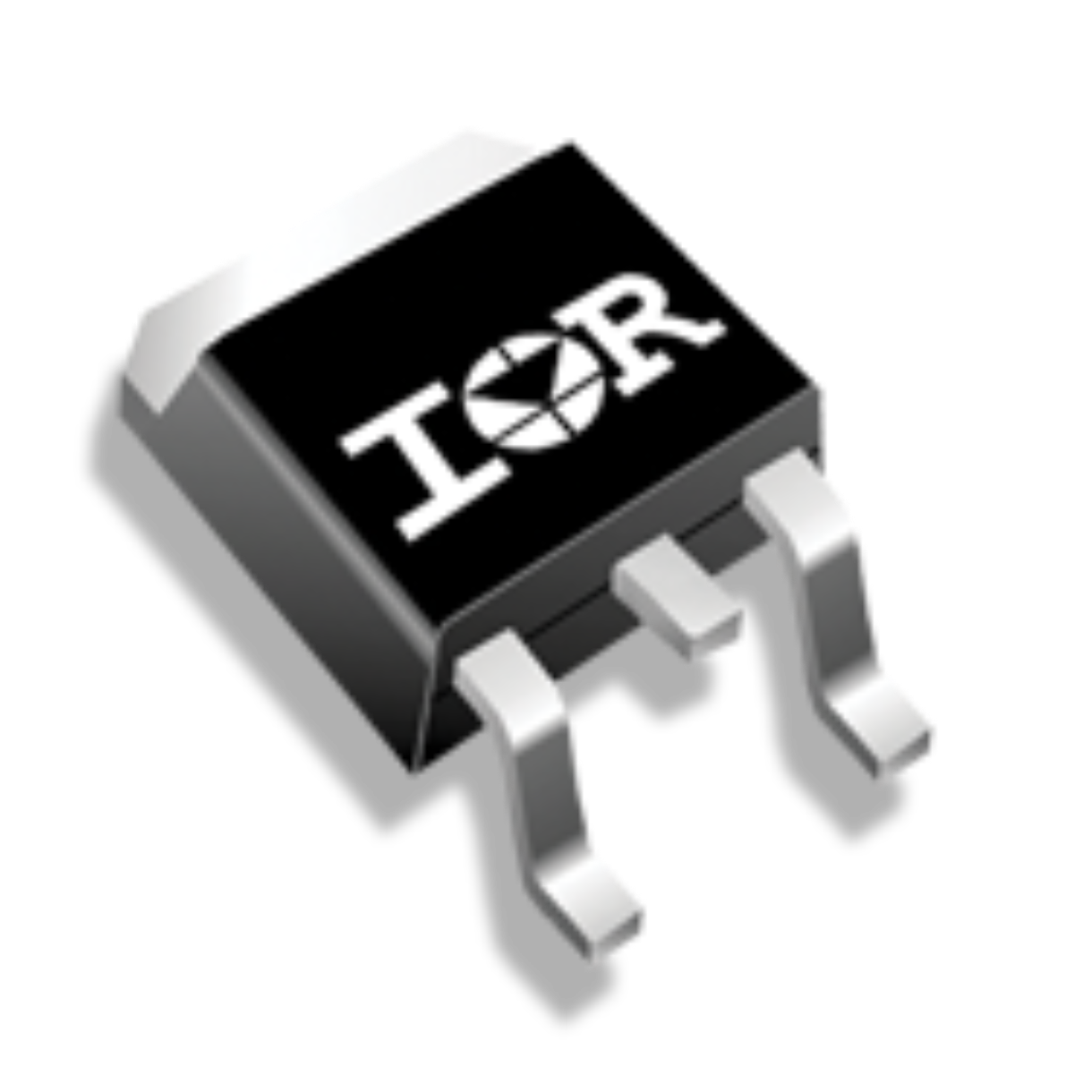

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFR3411PBF
Manufacturer

Infineon
ChipWorker Part#

CW11564703
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 100V 32A
Documentation

Datasheet

IRFR3411PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFR3411PBF Specifications

Attribute	Attribute Value

Part Number	IRFR3411PBF
Manufacturer	Infineon
ChipWorker Part#	CW11564703
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Power Rating	130 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.036 Ω
Polarity	N-Channel
Power Dissipation	130 W
Threshold Voltage	4 V
Input Capacitance	1960pF @25V
Drain to Source Voltage (Vds)	100 V
Breakdown Voltage (Drain to Source)	100 V
Continuous Drain Current (Ids)	32A
Rise Time	35 ns
Input Capacitance (Ciss)	1960pF @25V(Vds)
Fall Time	35 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	130W (Tc)
	expand all
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.39 mm
Material	Silicon
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRFR3411PBF is a HEXFET® single N-channel Power MOSFET utilizes advanced processing techniques to achieve extremely low ON-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design, provides an extremely efficient and reliable operation. It is designed for surface-mounting using vapour phase, infrared or wave soldering techniques. Power dissipation levels up to 1.5W are possible in typical surface-mount applications.
Advanced process technology
Dynamic dV/dt rating
Fully avalanche rating
Low static drain-to-source ON-resistance
