IRFSL3206PBF - Infineon

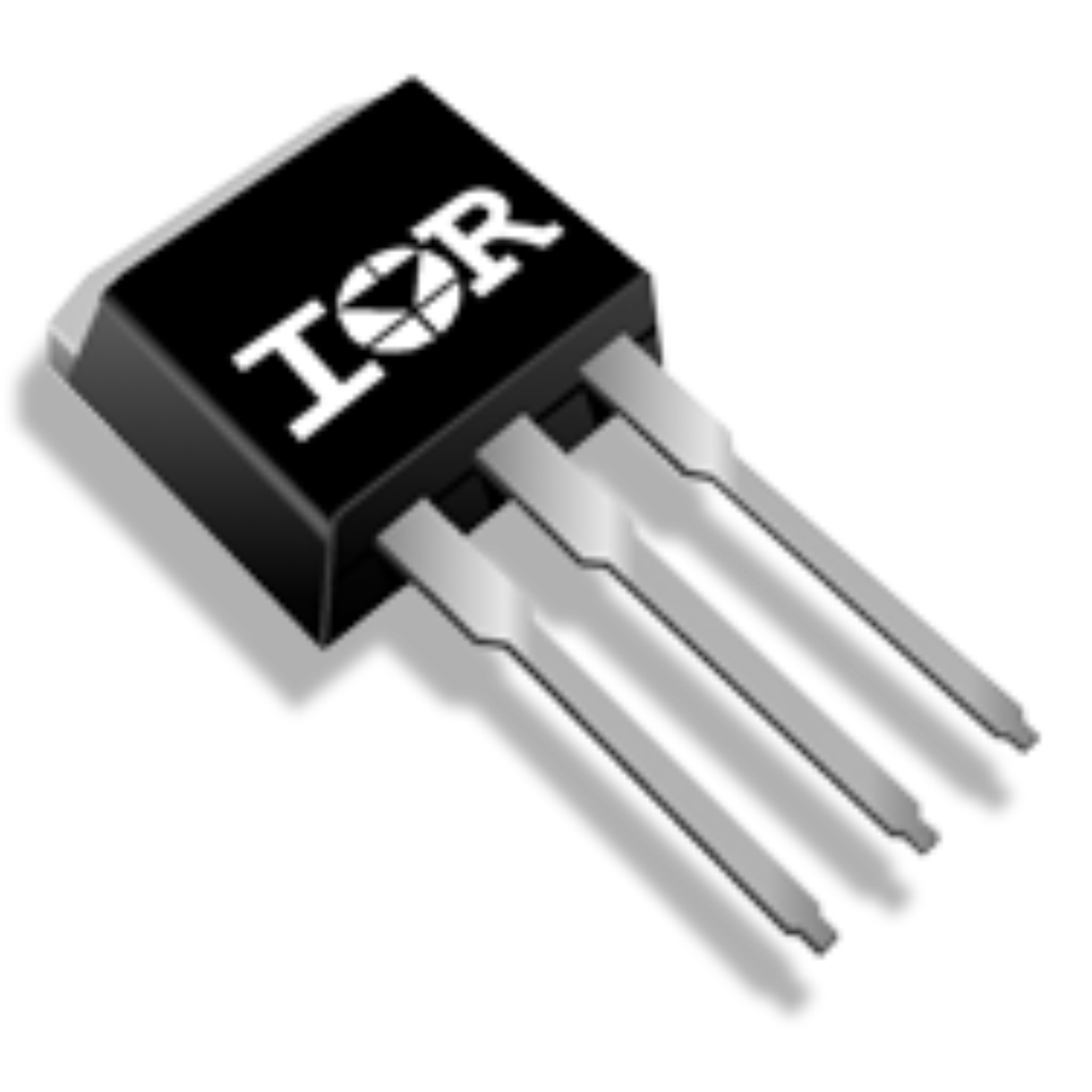

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFSL3206PBF
Manufacturer

Infineon
ChipWorker Part#

CW18286026
Category

MOSFET, MOSFET Transistor
Package

TO-262-3
Description

TO-262 N-CH 60V 210A
Documentation

Datasheet

IRFSL3206PBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFSL3206PBF Specifications

Attribute	Attribute Value

Part Number	IRFSL3206PBF
Manufacturer	Infineon
ChipWorker Part#	CW18286026
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-262-3
Power Rating	300 W
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	2.4 mΩ
Polarity	N-CH
Power Dissipation	300 W
Drain to Source Voltage (Vds)	60 V
Breakdown Voltage (Drain to Source)	60 V
Continuous Drain Current (Ids)	210A
Rise Time	82 ns
Input Capacitance (Ciss)	6540pF @50V(Vds)
Fall Time	83 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300W (Tc)
	expand all
Size-Length	10.67 mm
Size-Width	4.83 mm
Size-Height	9.65 mm
Material	Silicon
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status

Product Description

Benefits:
RoHS Compliant
