IRFTS9342TRPBF - Infineon

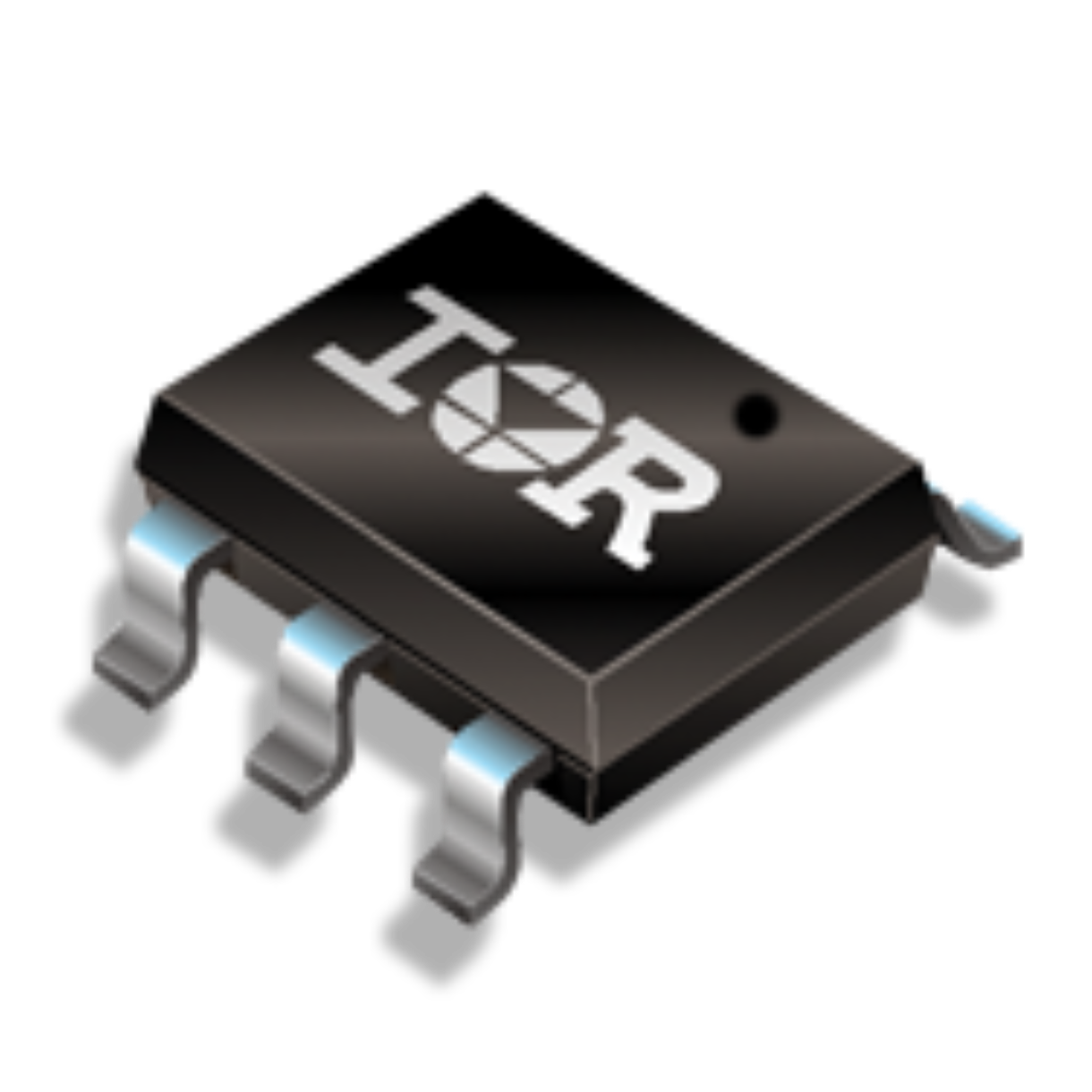

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFTS9342TRPBF
Manufacturer

Infineon
ChipWorker Part#

CW9962540
Category

MOSFET, MOSFET Transistor
Package

SOT-23-6
Description

TSOP P-CH 30V 5.8A
Documentation

Datasheet

IRFTS9342TRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFTS9342TRPBF Specifications

Attribute	Attribute Value

Part Number	IRFTS9342TRPBF
Manufacturer	Infineon
ChipWorker Part#	CW9962540
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Power Rating	2 W
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.032 Ω
Polarity	P-Channel
Power Dissipation	2 W
Input Capacitance	595 pF
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	5.8A
Rise Time	13 ns
Input Capacitance (Ciss)	595pF @25V(Vds)
Fall Time	28 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2W (Ta)
	expand all
Size-Length	3 mm
Size-Width	1.75 mm
Size-Height	1.3 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17

Product Description

The IRFTS9342TRPBF is a HEXFET® single P-channel Power MOSFET offers improved gate, avalanche and dynamic dV/dt ruggedness. It is suitable for battery powered circuits, half-bridge and full-bridge topologies, synchronous rectifier applications, DC-to-DC and AC-to-DC converters.
Fully characterized capacitance and avalanche SOA
Enhanced body diode dV/dt and di/dt capability
Industry standard pin-out
