IRFU3710ZPBF - Infineon

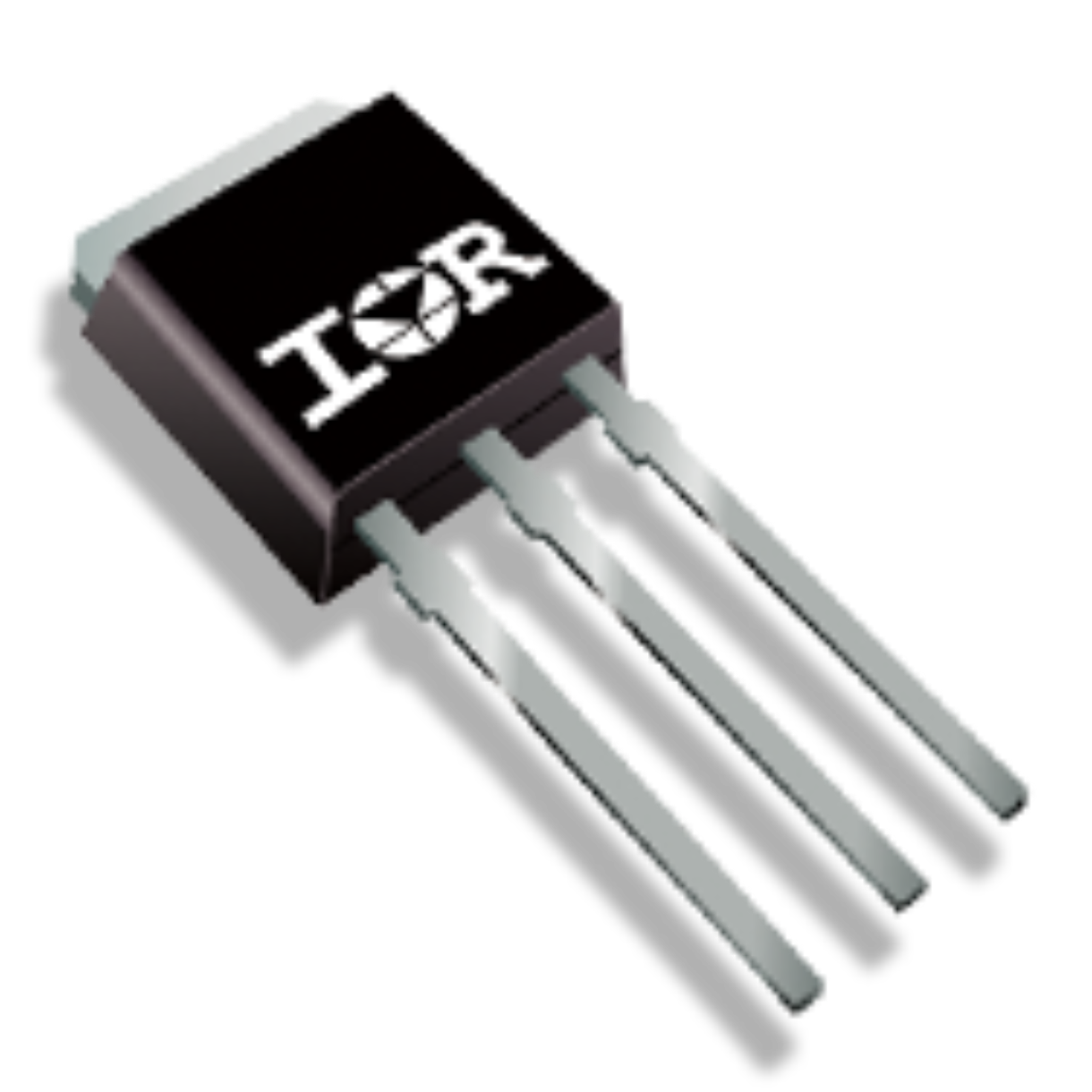

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRFU3710ZPBF
Manufacturer

Infineon
ChipWorker Part#

CW85505334
Category

MOSFET, MOSFET Transistor
Package

TO-251-3
Description

IPAK N-CH 100V 56A
Documentation

Datasheet

IRFU3710ZPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRFU3710ZPBF Specifications

Attribute	Attribute Value

Part Number	IRFU3710ZPBF
Manufacturer	Infineon
ChipWorker Part#	CW85505334
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-251-3
Power Rating	140 W
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.018 Ω
Polarity	N-CH
Power Dissipation	140 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	100 V
Continuous Drain Current (Ids)	56A
Input Capacitance (Ciss)	2930pF @25V(Vds)
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	140W (Tc)
	expand all
Size-Length	6.6 mm
Size-Width	2.3 mm
Size-Height	6.1 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
RoHS	Non-Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2015/12/17

Product Description

Benefits:
RoHS Compliant
Industry-leading quality
Fast Switching
175°C Operating Temperature

expand all
