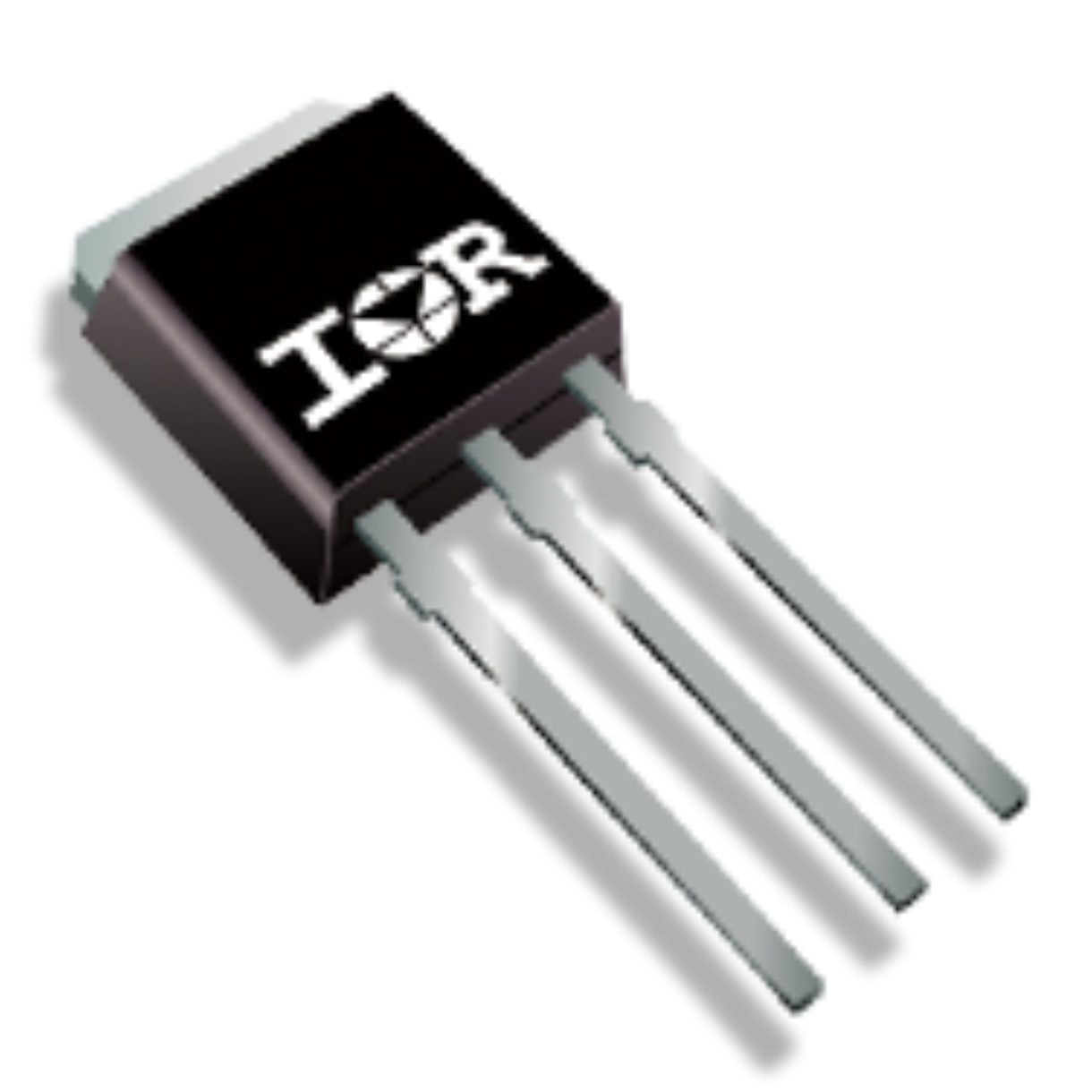

The pictures are for reference only, and the specific specifications can be found in the product manual.
-
Part NoIRFU5305PBF
-
ManufacturerInfineon
-
ChipWorker Part#CW4015882
-
CategoryMOSFET, MOSFET Transistor
-
PackageTO-251-3
-
DescriptionIPAK P-CH 55V 31A
-
DocumentationDatasheet
Payment Methods and Delivery
{{ estimate }}
IRFU5305PBF Global Supplier
| {{ supplierTable.supplier }} | {{ supplierTable.part }} | {{ supplierTable.availability }} | MOQ | {{ supplierTable.delivery_date }} | {{ supplierTable.buy }} | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
{{ skuList.vendorName }}
|
{{ noList.partNo }}
{{ strFormat(skuList.part_no) }}
{{ skuList.part_no }}
{{ skuList.mfrEn }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
{{ skuList.moq }} - |
{{ceilNumber(skuList.minDeliveryDay,skuList.maxDeliveryDay)}} {{delivery_date}}
6 {{delivery_date}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
|
{{ skuList.vendorName }}
|
{{ skuList.part_no }}
{{ skuList.mfrEn }}
{{ noList.partNo }}
{{ noList.mfr }}
|
{{ numFormat(skuList.stockQty) }}
{{ search_item }}
|
- |
{{outStock}}
|
{{ formatQuantity(priceList.quantity) }}
{{ ToEffectiveNum(priceList.price) }}
{{viewMore}}
|
- | ${{UpToFourDecimals(priceCalc,skuList.rate)}} |
|
|
{{viewMore}}
|
|||||||||||||||
|
{{viewMore}}
|
|||||||||||||||
|
DigiKey
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,1)}} |
|
||||||||
|
Arrow
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.96)}} |
|
||||||||
|
Mouser
|
{{noList.partNo}}
{{noList.mfr}}
|
0
{{ search_item }}
|
- | {{outStock}} | - | ${{UpToFourDecimals(priceCalc,0.92)}} |
|
||||||||
|
{{submitRFQ}}
|
|||||||||||||||
{{ apiText }}{{ apiTime }}(UTC+8)
IRFU5305PBF Specifications
| Attribute | Attribute Value |
|---|---|
| Part Number | IRFU5305PBF |
| Manufacturer | Infineon |
| ChipWorker Part# | CW4015882 |
| Category | MOSFET, MOSFET Transistor |
| Documentation | Datasheet |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-251-3 |
| Power Rating | 89 W |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.065 Ω |
| Polarity | P-Channel |
| Power Dissipation | 69 W |
| Threshold Voltage | 4 V |
| Drain to Source Voltage (Vds) | 55 V |
| Continuous Drain Current (Ids) | 31A |
| Rise Time | 66 ns |
| Input Capacitance (Ciss) | 1200pF @25V(Vds) |
| Input Power (Max) | 110 W |
| Fall Time | 63 ns |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 110W (Tc) |
| expand all | |
| Size-Length | 6.6 mm |
| Size-Width | 2.3 mm |
| Size-Height | 6.1 mm |
| Lead Length | 9.65 mm |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 175℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
Product Description
- The IRFU5305PBF is a -55V single P-channel HEXFET® Power MOSFET, fifth generation HEXFET utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET® power MOSFET is well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications. The D-Pak is designed for surface mounting using vapour phase, infrared or wave soldering techniques.
- Ultra low on-resistance
- Advanced process technology
- Fully avalanche rated
