IRGPS60B120KDP - Infineon

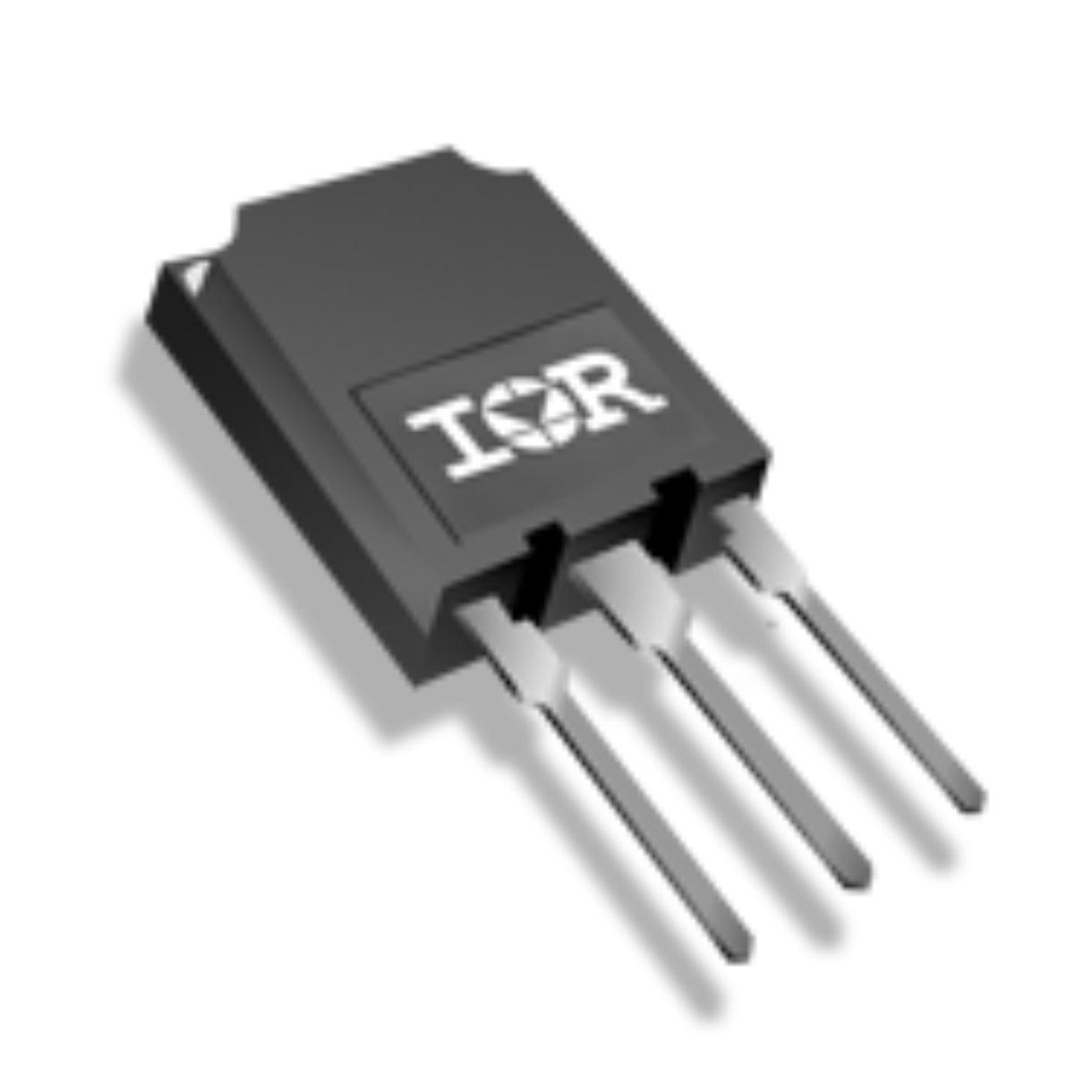

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRGPS60B120KDP
Manufacturer

Infineon
ChipWorker Part#

CW10758904
Category

IGBT Transistor, IGBT Module
Package

TO-274
Description

Trans IGBT Chip N-CH 1200V 105A 595000mW 3Pin(3+Tab) TO-274AA Tube
Documentation

Datasheet

IRGPS60B120KDP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRGPS60B120KDP Specifications

Attribute	Attribute Value

Part Number	IRGPS60B120KDP
Manufacturer	Infineon
ChipWorker Part#	CW10758904
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-274
Power Rating	595 W
Number of Positions	3 Position
Power Dissipation	595 W
Breakdown Voltage (Collector to Emitter)	1200 V
Reverse recovery time	180 ns
Input Power (Max)	595 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	595 W
	expand all
Size-Length	16.1 mm
Size-Width	5.5 mm
Size-Height	20.8 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The IRGPS60B120KDP is a 1200V Ultrafast 5 to 40kHz motor control copack IGBT with soft recovery diode. Hard switching process optimized for high operating frequency. Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3. HEXFRED diodes optimized for performance and used in bridge configurations.
10µs Short circuit capability
Low VCE (on) non punch through IGBT technology
Square RBSOA
Positive VCE (on) temperature coefficient
Rugged transient performance
Low EMI
Significantly less snubber required
Excellent current sharing in parallel operation
Longer leads for easier mounting
