IRLR8729TRPBF - Infineon

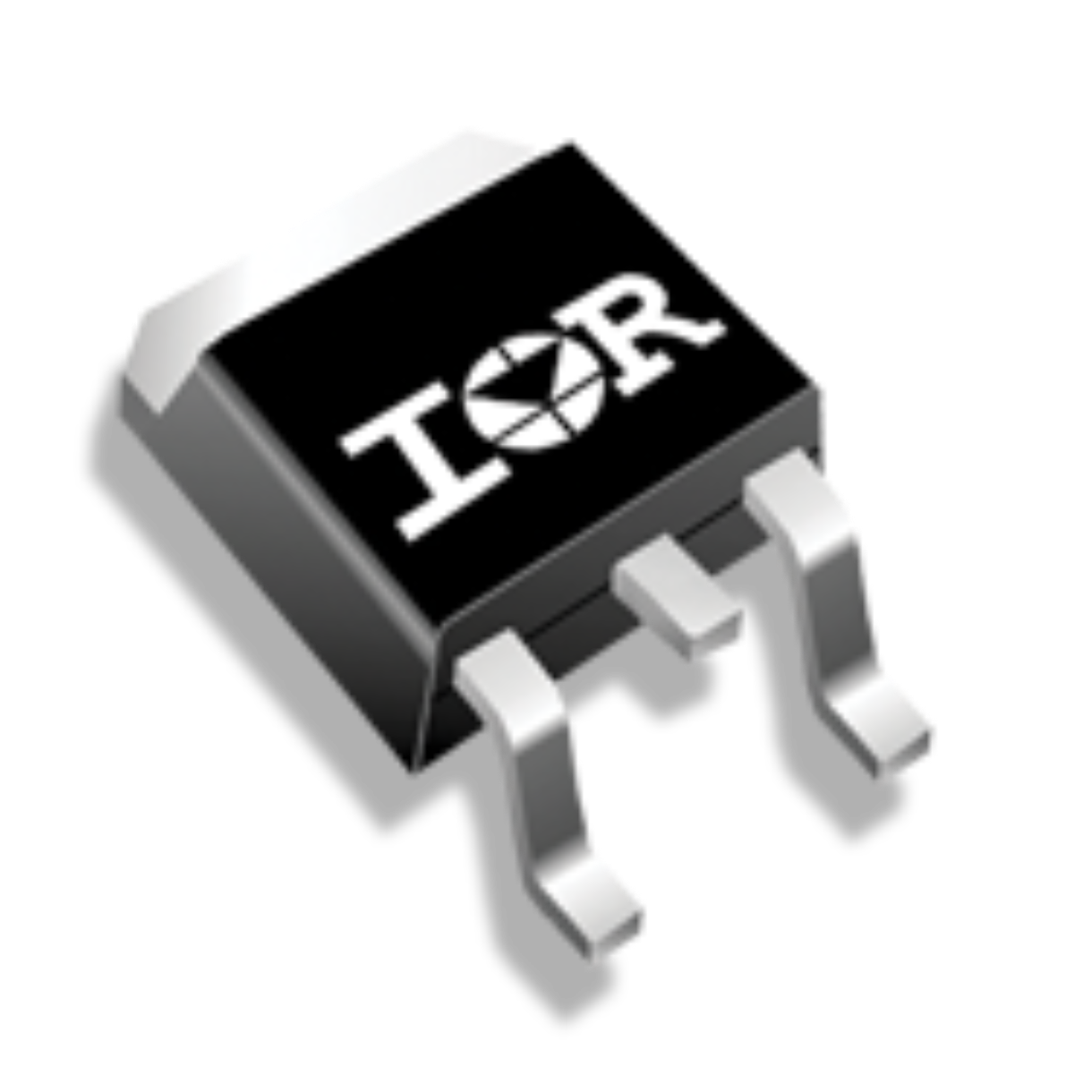

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IRLR8729TRPBF
Manufacturer

Infineon
ChipWorker Part#

CW45660966
Category

MOSFET, MOSFET Transistor
Package

TO-252-3
Description

DPAK N-CH 30V 58A
Documentation

Datasheet

IRLR8729TRPBF Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IRLR8729TRPBF Specifications

Attribute	Attribute Value

Part Number	IRLR8729TRPBF
Manufacturer	Infineon
ChipWorker Part#	CW45660966
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.006 Ω
Polarity	N-CH
Power Dissipation	55 W
Threshold Voltage	1.8 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	58A
Rise Time	47 ns
Input Capacitance (Ciss)	1350pF @15V(Vds)
Input Power (Max)	55 W
Fall Time	10 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	55W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Benefits:
Very Low RDS(on) at 4.5V VGS
Ultra-Low Gate Impedance
Fully Characterized Avalanche Voltage and Current
Lead-Free
RoHS compliant
