ISL80103IRAJZ - Intersil

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ISL80103IRAJZ
Manufacturer

Intersil
ChipWorker Part#

CW48520057
Category

Voltage Regulator
Package

DFN-10
Description

INTERSIL ISL80103IRAJZ LDO Voltage Regulator, Adjustable, 2.2V to 6V in, 120mV drop, 800mV to 5V/3A out, DFN-10
Documentation

Datasheet

ISL80103IRAJZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ISL80103IRAJZ Specifications

Attribute	Attribute Value

Part Number	ISL80103IRAJZ
Manufacturer	Intersil
ChipWorker Part#	CW48520057
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	DFN-10
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5V
Output Current	3 A
Supply Current	9mA ~ 12mA
Number of Positions	10 Position
voltage rating	120 mV
Input Voltage (Max)	6 V
Input Voltage (Min)	2.2 V
Output Voltage (Max)	5 V
Output Voltage (Min)	800 mV
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	6 V
	expand all
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

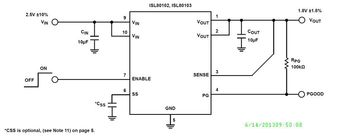

Product Description

The ISL80103IRAJZ is a low voltage high-current single output high performance LDO Linear Regulator specified for 2 and 3A output current. This LDO operates from the input voltages of 2.2 to 6V and is capable of providing the output voltages of 0.8 to 5.5V on the adjustable VOUT versions. Fixed output voltage options are available in 1.8, 2.5V. For applications that demand in-rush current less than the current limit, an external capacitor on the soft-start pin provides adjustment. A submicron BiCMOS process is utilized for this product family to deliver the best-in-class analog performance and overall value. This CMOS will consume significantly lower quiescent current as a function of load over bipolar LDO, which translates into higher efficiency and the ability to consider packages with smaller footprints. The quiescent current has been modestly compromised to enable a leading class fast load transient response and hence a lower total AC regulation band for an LDO in this category.
Stable with ceramic capacitors
Very fast transient response
Power-good output
Adjustable in-rush current limiting
Short-circuit and overtemperature protection
Excellent 62dB PSRR
49µVRMS Output noise
