ISL8204MIRZ - Intersil

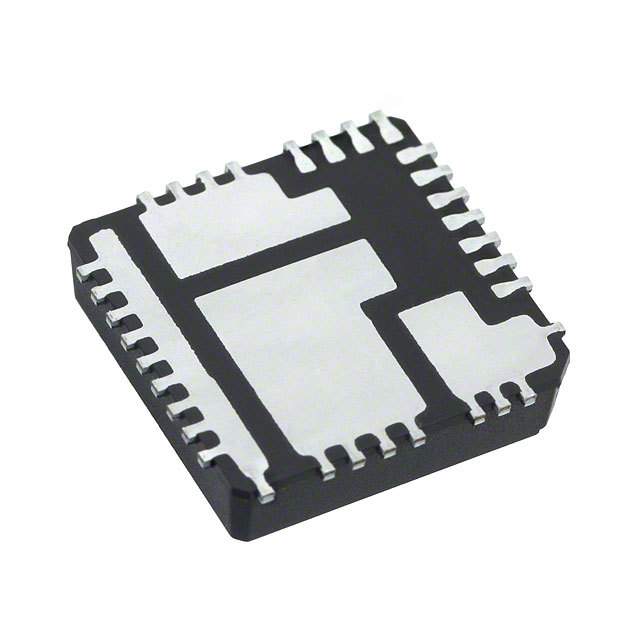

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ISL8204MIRZ
Manufacturer

Intersil
ChipWorker Part#

CW93762555
Category

DC to DC Converter
Package

QFN-15
Description

INTERSIL ISL8204MIRZ DC-DC POL Converter, Adjustable, Buck, 660kHz, 600mV to 6V out, 4A, QFN-15
Documentation

Datasheet

ISL8204MIRZ Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ISL8204MIRZ Specifications

Attribute	Attribute Value

Part Number	ISL8204MIRZ
Manufacturer	Intersil
ChipWorker Part#	CW93762555
Category	DC to DC Converter
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	15 Pin
Case/Package	QFN-15
Number of Outputs	1 Output
Output Voltage	0.6V ~ 6V
Output Current	4 A
Number of Positions	15 Position
Switching Frequency	660 kHz
Input Voltage (Max)	20 V
Input Voltage (Min)	1 V
Output Voltage (Max)	6 V
Output Voltage (Min)	600 mV
Output Current (Max)	4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	1V ~ 20V
	expand all
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
