Part No

ISO7740FDWR
Manufacturer

TI
ChipWorker Part#

CW2026865
Category

Interface Isolator, Digital Isolator
Package

SOIC-16
Description

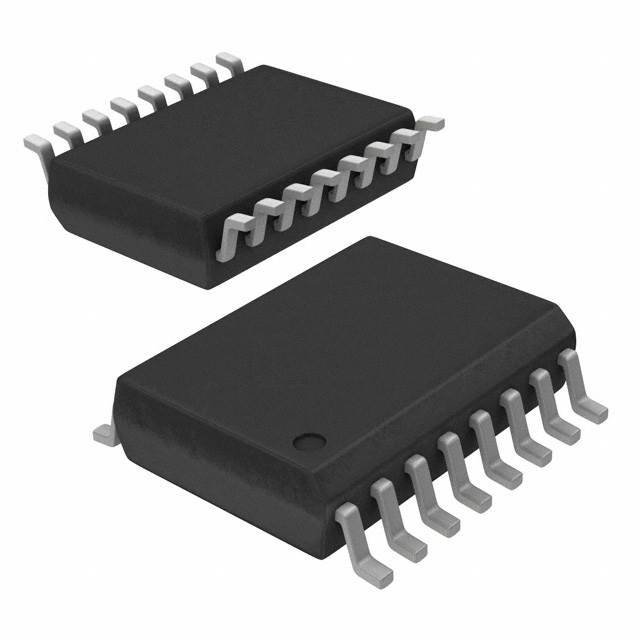

TEXAS INSTRUMENTS ISO7740FDWR Digital Isolator, 4Channel, 10.7ns, 2.25V, 5.5V, SOIC, 16Pins New
Documentation

Datasheet

ISO7740FDWR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ISO7740FDWR Specifications

Attribute	Attribute Value

Part Number	ISO7740FDWR
Manufacturer	TI
ChipWorker Part#	CW2026865
Category	Interface Isolator, Digital Isolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	2.25V (min)
Rise/Fall Time	2.4 ns
Number of Channels	4 Channel
Number of Positions	16 Position
Power Dissipation	200 mW
Isolation Voltage	5000 Vrms
Fall Time (Max)	3.9 ns
Fall Time (Max)	3.9 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
Supply Voltage	2.25V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.25 V
	expand all
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

The ISO774x devices are high-performance, quad-channel digital isolators with 5000 VRMS (DW package) and 2500 VRMS (DBQ package) isolation ratings per UL 1577. This family of devices has reinforced insulation ratings according to VDE, CSA, TUV and CQC.
The ISO774x devices provide high electromagnetic immunity and low emissions at low power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by silicon dioxide (SiO2) insulation barrier. This device comes with enable pins which can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption. The ISO7740 device has all four channels in the same direction, the ISO7741 device has three forward and one reverse-direction channels, and the ISO7742 device has two forward and two reverse-direction channels. If the input power or signal is lost, default output is _high_ for devices without suffix F and _low_ for devices with suffix F. See the _Device Functional Modes_ section for further details.
Used in conjunction with isolated power supplies, this device helps prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. Through innovative chip design and layout techniques, electromagnetic compatibility of the ISO774x devices have been significantly enhanced to ease system-level ESD, EFT, surge, and emissions compliance. The ISO774x devices are available in 16-pin SOIC and QSOP packages.
