ISO7762FDWR - TI

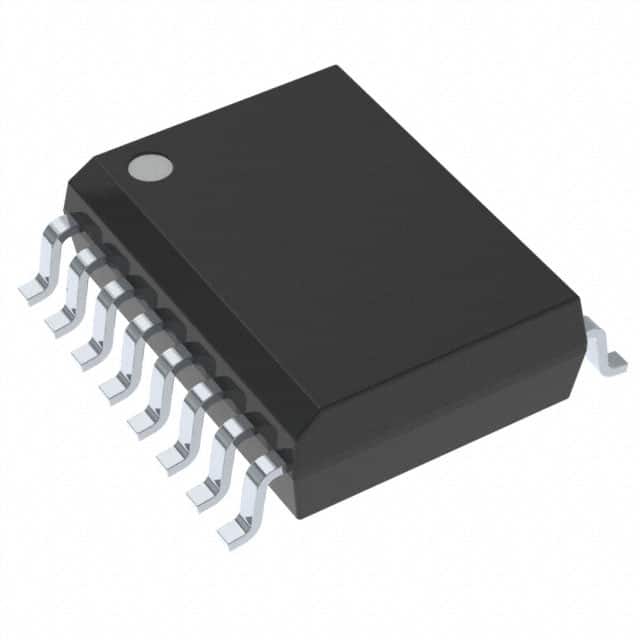

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ISO7762FDWR
Manufacturer

TI
ChipWorker Part#

CW35815172
Package

SOP-16
Description

Digital Isolator CMOS 6-CH 100Mbps 16-Pin SOIC

ISO7762FDWR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ISO7762FDWR Specifications

Attribute	Attribute Value

Part Number	ISO7762FDWR
Manufacturer	TI
ChipWorker Part#	CW35815172
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOP-16
Rise/Fall Time	1.1ns, 1.4ns
Number of Channels	6 Channel
Power Dissipation	292 mW
Isolation Voltage	5000 Vrms
Fall Time (Max)	3.9 ns
Fall Time (Max)	3.9 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	292 mW
Supply Voltage	2.25V ~ 5.5V
	expand all
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status

Product Description

General Purpose Digital Isolator 5000Vrms 6 Channel 100Mbps 85kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
