ISO7842DW - TI

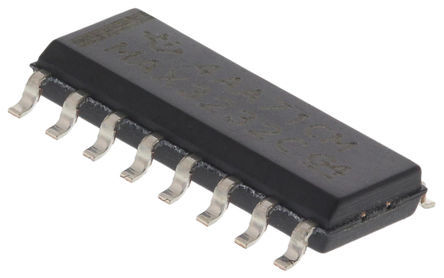

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ISO7842DW
Manufacturer

TI
ChipWorker Part#

CW10954003
Category

Interface Isolator, Digital Isolator
Package

SOIC-16
Description

TEXAS INSTRUMENTS ISO7842DW Digital Isolator, 4Channel, 10.7ns, 2.25V, 5.5V, WSOIC, 16Pins
Documentation

Datasheet

ISO7842DW Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ISO7842DW Specifications

Attribute	Attribute Value

Part Number	ISO7842DW
Manufacturer	TI
ChipWorker Part#	CW10954003
Category	Interface Isolator, Digital Isolator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	2.25V (min)
Rise/Fall Time	1.7ns, 1.9ns
Number of Channels	4 Channel
Number of Positions	16 Position
Power Dissipation	200 mW
Rise Time	1.7 ns
Isolation Voltage	5700 Vrms
Input Current (Min)	10 μA
Fall Time (Max)	3.9 ns
Fall Time (Max)	3.9 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	200 mW
Supply Voltage	2.25V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.25 V
	expand all
Size-Length	10.3 mm
Size-Width	7.5 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

The ISO7842DW is a quad-channel Digital Isolator with a 8000VPK isolation voltage. It has reinforced isolation certifications according to VDE, CSA, CQC and TUV. The isolator provides high electromagnetic immunity and low emissions at low-power consumption, while isolating CMOS or LVCMOS digital I/Os. Each isolation channel has a logic input and output buffer separated by a silicon-dioxide (SiO2) insulation barrier. This device comes with enable pins that can be used to put the respective outputs in high impedance for multi-master driving applications and to reduce power consumption. The ISO7842 device has two forward and two reverse-direction channels. It is used in conjunction with isolated power supplies, this device helps prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.
Up to 100Mbps signalling rate
±100kV/µs Minimum industry leading CMTI
Robust electromagnetic compatibility (EMC)
Low emissions
>40 Years isolation barrier life
Low-power consumption
Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
