ITS4200SSJDXUMA1 - Infineon

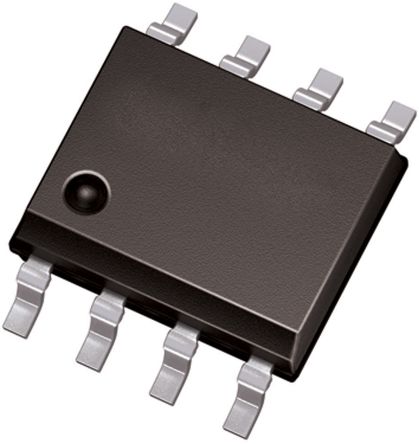

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

ITS4200SSJDXUMA1
Manufacturer

Infineon
ChipWorker Part#

CW4260393
Category

Switching Controller
Package

PG-DSO-8
Description

Power Switch Hi Side 1.2A 8Pin DSO
Documentation

Datasheet

ITS4200SSJDXUMA1 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

ITS4200SSJDXUMA1 Specifications

Attribute	Attribute Value

Part Number	ITS4200SSJDXUMA1
Manufacturer	Infineon
ChipWorker Part#	CW4260393
Category	Switching Controller
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PG-DSO-8
Number of Outputs	1 Output
Input Voltage (DC)	13.5 V
Output Current	1.2 A
Supply Current	0.8 mA
Number of Positions	8 Position
Power Dissipation	1.4 W
Input Voltage (Min)	6 V
Output Current (Max)	1.2 A
Output Current (Min)	1.2 A
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1400 mW
Supply Voltage	6V ~ 52V
Input Voltage	13.5 V
	expand all
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

With this high side ITS4200SSJDXUMA1 power switch by Infineon Technologies you"ll be able to switch between various voltage levels in a safe manner. This charge controller has single output. This device has a maximum power dissipation of 1400 mW. It features 0.15 Ohm switch on resistance. This device has a supply current of 0.8 mA and a minimum output current of 1.2 A. Its maximum power dissipation is 1400 mW. This charge controller has a minimum operating temperature of -40 °C and a maximum of 125 °C.
