IXBX50N360HV - IXYS Semiconductor

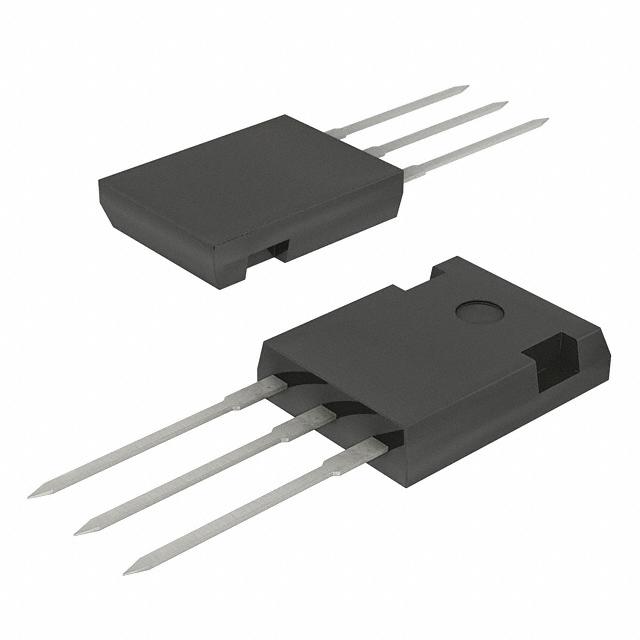

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXBX50N360HV
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW97509551
Category

IGBT Transistor, IGBT Module
Package

TO-247-3
Description

Igbt 3600V 125A 660W To-247plus
Documentation

Datasheet

IXBX50N360HV Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXBX50N360HV Specifications

Attribute	Attribute Value

Part Number	IXBX50N360HV
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW97509551
Category	IGBT Transistor, IGBT Module
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Breakdown Voltage (Collector to Emitter)	3600 V
Reverse recovery time	1.7 µs
Input Power (Max)	660 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	660000 mW
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

IGBT 3600V 125A 660W Through Hole TO-247PLUS-HV
