Part No

IXFH15N100
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW114743165
Category

High Voltage MOS Transistor
Package

TO-247-3
Description

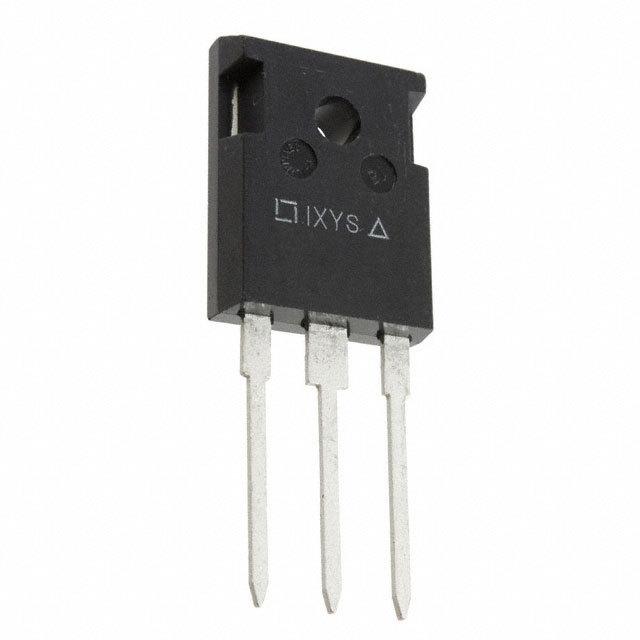

IXYS SEMICONDUCTOR IXFH15N100 Power MOSFET, N Channel, 15A, 1kV, 700mohm, 10V, 4.5V
Documentation

Datasheet

IXFH15N100 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXFH15N100 Specifications

Attribute	Attribute Value

Part Number	IXFH15N100
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW114743165
Category	High Voltage MOS Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.7 Ω
Polarity	N-Channel
Power Dissipation	360 W
Threshold Voltage	4.5 V
Drain to Source Voltage (Vds)	1 kV
Breakdown Voltage (Drain to Source)	1000 V
Continuous Drain Current (Ids)	15.0 A
Rise Time	30 ns
Input Capacitance (Ciss)	4500pF @25V(Vds)
Fall Time	30 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	360W (Tc)
	expand all
Size-Length	16.26 mm
Size-Width	5.3 mm
Size-Height	21.46 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15

Product Description

The IXFH15N100 is a HiPerFET™ N-channel enhancement-mode Power MOSFET features low package inductance easy to drive and to protect and fast intrinsic rectifier.
Unclamped inductive switching (UIS) rated
International standard package
Rugged polysilicon gate cell structure
Low RDS (ON)
High dV/dt and low trr
Easy to mount
High power density

expand all
