IXFK120N65X2 - IXYS Semiconductor

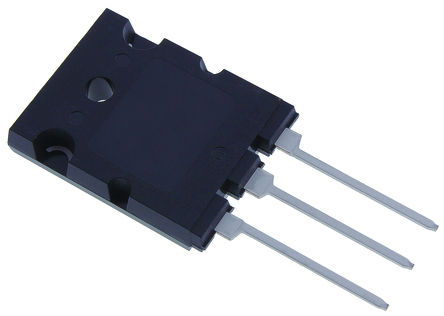

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXFK120N65X2
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW51920913
Category

MOSFET, MOSFET Transistor
Package

TO-264-3
Description

TO-264 N-CH 650V 120A
Documentation

Datasheet

IXFK120N65X2 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXFK120N65X2 Specifications

Attribute	Attribute Value

Part Number	IXFK120N65X2
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW51920913
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-264-3
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.024 Ω
Polarity	N-Channel
Power Dissipation	1.25 kW
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	650 V
Continuous Drain Current (Ids)	120A
Rise Time	26 ns
Input Capacitance (Ciss)	15500pF @25V(Vds)
Fall Time	12 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1250W (Tc)
	expand all
Size-Length	20.3 mm
Size-Width	26.3 mm
Size-Height	5.3 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status
REACH SVHC Compliance Edition	2016/06/20

Product Description

N-Channel 650V 120A (Tc) 1250W (Tc) Through Hole TO-264
