IXFN210N30P3 - IXYS Semiconductor

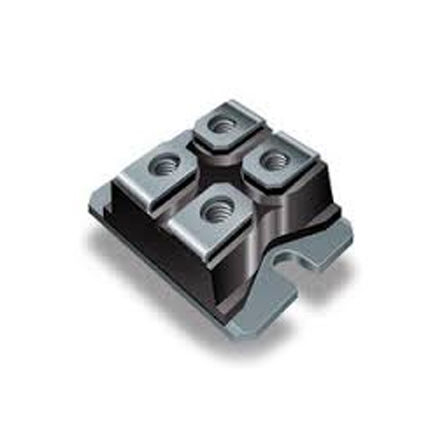

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXFN210N30P3
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW118811704
Category

MOSFET, MOSFET Transistor
Package

SOT-227-4
Description

SOT-227B N-CH 300V 192A
Documentation

Datasheet

IXFN210N30P3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXFN210N30P3 Specifications

Attribute	Attribute Value

Part Number	IXFN210N30P3
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW118811704
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-227-4
Polarity	N-CH
Power Dissipation	1500W (Tc)
Drain to Source Voltage (Vds)	300 V
Continuous Drain Current (Ids)	192A
Rise Time	25 ns
Input Capacitance (Ciss)	16200pF @25V(Vds)
Fall Time	13 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1500W (Tc)
	expand all
Size-Length	38.23 mm
Size-Width	25.07 mm
Size-Height	9.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 300V 192A (Tc) 1500W (Tc) Chassis Mount SOT-227B
