IXFN38N100P - IXYS Semiconductor

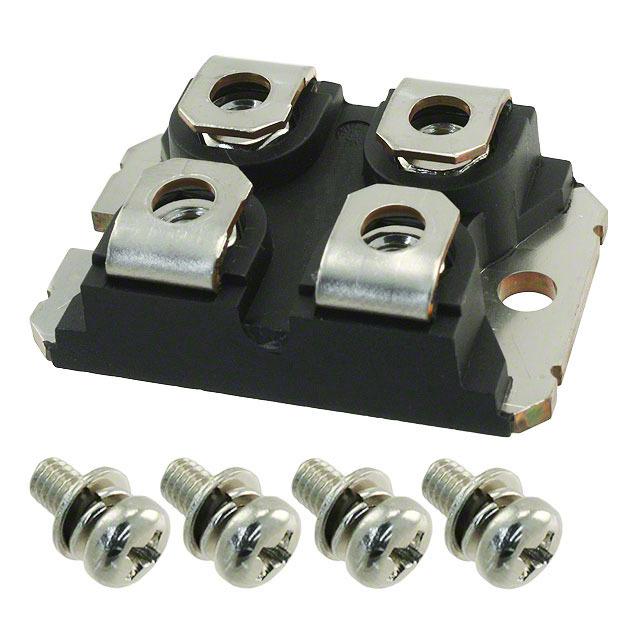

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXFN38N100P
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW43679436
Category

MOSFET, MOSFET Transistor
Package

SOT-227-4
Description

SOT-227B N-CH 1000V 38A
Documentation

Datasheet

IXFN38N100P Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXFN38N100P Specifications

Attribute	Attribute Value

Part Number	IXFN38N100P
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW43679436
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Number of Pins	4 Pin
Case/Package	SOT-227-4
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	210 mΩ
Polarity	N-CH
Power Dissipation	1 kW
Drain to Source Voltage (Vds)	1000 V
Breakdown Voltage (Drain to Source)	1000 V
Continuous Drain Current (Ids)	38A
Rise Time	55 ns
Input Capacitance (Ciss)	24000pF @25V(Vds)
Input Power (Max)	1000 W
Fall Time	40 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000W (Tc)
	expand all
Size-Length	38.23 mm
Size-Width	25.42 mm
Size-Height	9.6 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 1000V 38A (Tc) 1000W (Tc) Chassis Mount SOT-227B
