IXFN82N60P - IXYS Semiconductor

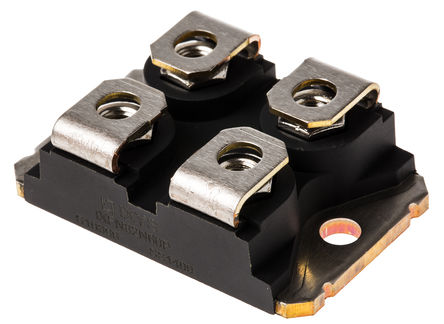

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXFN82N60P
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW55792658
Category

MOSFET, MOSFET Transistor
Package

SOT-227-4
Description

Trans MOSFET N-CH 600V 72A 4Pin SOT-227B
Documentation

Datasheet

IXFN82N60P Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXFN82N60P Specifications

Attribute	Attribute Value

Part Number	IXFN82N60P
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW55792658
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Panel
Number of Pins	4 Pin
Case/Package	SOT-227-4
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	0.075 Ω
Polarity	N-Channel
Power Dissipation	1.04 kW
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	82.0 A
Rise Time	23 ns
Input Capacitance (Ciss)	23000pF @25V(Vds)
Fall Time	24 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1040W (Tc)
	expand all
Size-Length	38.2 mm
Size-Width	25.07 mm
Size-Height	9.6 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15

Product Description

N-Channel 600V 72A (Tc) 1040W (Tc) Chassis Mount SOT-227B
