IXFX64N60P - IXYS Semiconductor

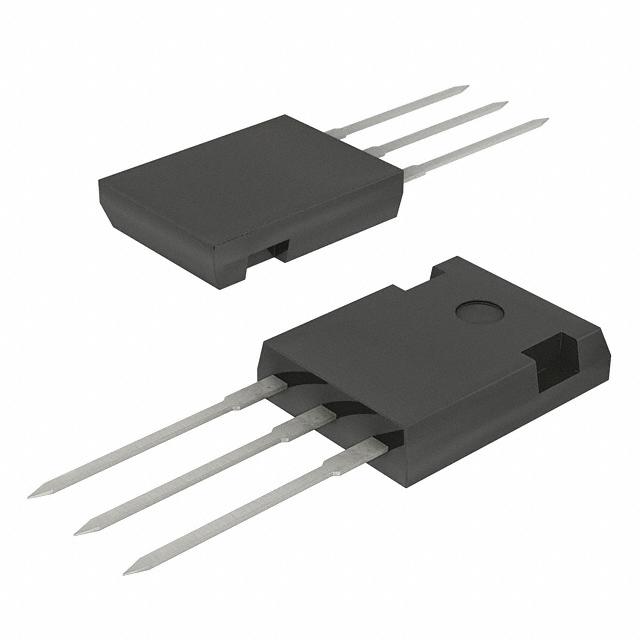

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXFX64N60P
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW87616631
Category

MOSFET, MOSFET Transistor
Package

TO-247-3
Description

N-Channel 600V 1040W 200NC PolarHV HiPerFET Mosfet Through Hole - PLUS-247
Documentation

Datasheet

IXFX64N60P Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXFX64N60P Specifications

Attribute	Attribute Value

Part Number	IXFX64N60P
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW87616631
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	64.0 A
Drain to Source Resistance (on) (Rds)	96.0 mΩ
Polarity	N-Channel
Power Dissipation	1040W (Tc)
Input Capacitance	1.15 nF
Gate Charge	200 nC
Drain to Source Voltage (Vds)	600 V
Breakdown Voltage (Drain to Source)	600 V
Continuous Drain Current (Ids)	64.0 A
Rise Time	23 ns
Input Capacitance (Ciss)	12000pF @25V(Vds)
Input Power (Max)	1040 W
Fall Time	24 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1040W (Tc)
	expand all
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 600V 64A (Tc) 1040W (Tc) Through Hole PLUS247™-3
