IXTK22N100L - IXYS Semiconductor

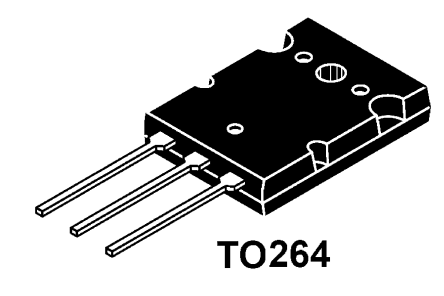

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXTK22N100L
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW89294044
Category

MOSFET, MOSFET Transistor
Package

TO-264-3
Description

TO-264 N-CH 1000V 22A
Documentation

Datasheet

IXTK22N100L Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXTK22N100L Specifications

Attribute	Attribute Value

Part Number	IXTK22N100L
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW89294044
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-264-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	600 mΩ
Polarity	N-CH
Power Dissipation	700 W
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	1000 V
Breakdown Voltage (Drain to Source)	1000 V
Continuous Drain Current (Ids)	22A
Rise Time	35 ns
Input Capacitance (Ciss)	7050pF @25V(Vds)
Input Power (Max)	700 W
Fall Time	50 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	700W (Tc)
	expand all
Size-Length	19.96 mm
Size-Width	5.13 mm
Size-Height	26.16 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

N-Channel 1000V 22A (Tc) 700W (Tc) Through Hole TO-264 (IXTK)
