IXTQ96N20P - IXYS Semiconductor

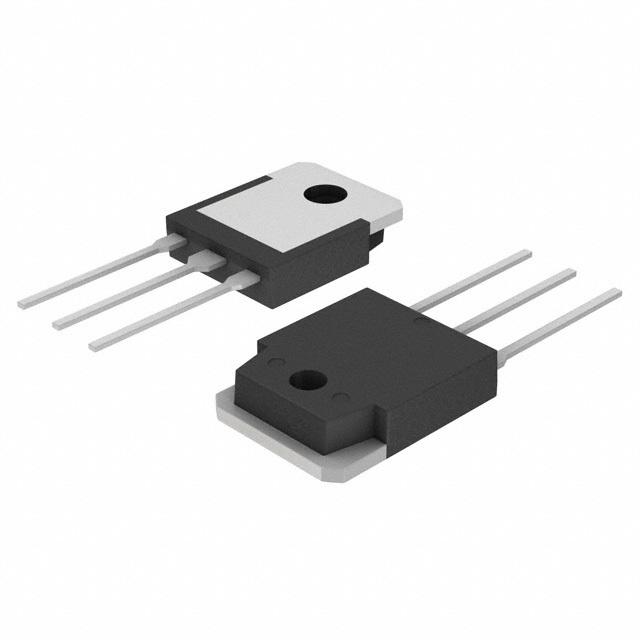

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

IXTQ96N20P
Manufacturer

IXYS Semiconductor
ChipWorker Part#

CW5548163
Category

MOSFET, MOSFET Transistor
Package

TO-3-3
Description

N-Channel 200V 96A 24mOhm Through Hole Power MOSFET - TO-3P
Documentation

Datasheet

IXTQ96N20P Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

IXTQ96N20P Specifications

Attribute	Attribute Value

Part Number	IXTQ96N20P
Manufacturer	IXYS Semiconductor
ChipWorker Part#	CW5548163
Category	MOSFET, MOSFET Transistor
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Power Dissipation	600 W
Drain to Source Voltage (Vds)	200 V
Rise Time	30 ns
Input Capacitance (Ciss)	4800pF @25V(Vds)
Input Power (Max)	600 W
Fall Time	30 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	600W (Tc)
	expand all
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Trans MOSFET N-CH 200V 96A 3-Pin(3+Tab) TO-3P
