JANTX1N6642US - Microsemi

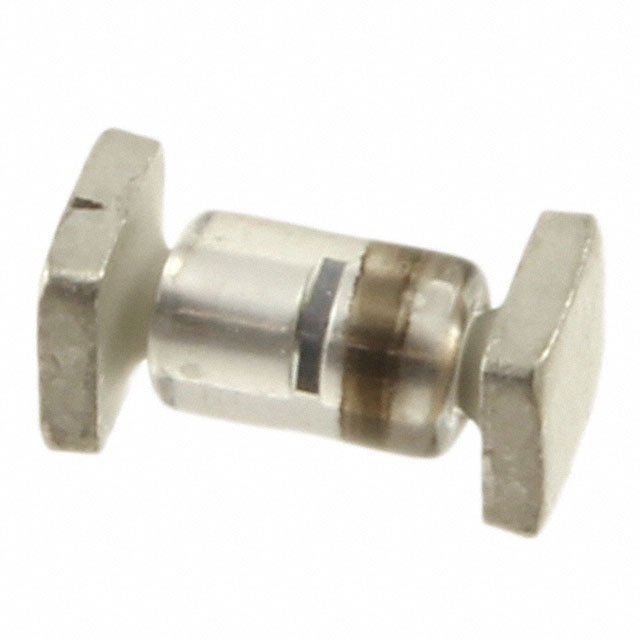

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

JANTX1N6642US
Manufacturer

Microsemi
ChipWorker Part#

CW61300582
Category

TVS Diode
Package

D-5D-2
Description

Diode Switching 75V 0.3A 2Pin B-MELF
Documentation

Datasheet

JANTX1N6642US Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

JANTX1N6642US Specifications

Attribute	Attribute Value

Part Number	JANTX1N6642US
Manufacturer	Microsemi
ChipWorker Part#	CW61300582
Category	TVS Diode
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	D-5D-2
Forward Voltage	1.2 V
Power Dissipation	750 mW
Reverse recovery time	5 ns
Maximum Forward Voltage (Max)	1.2V @100mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	expand all
Size-Length	4.95 mm
Size-Width	2.16 mm
Size-Height	2.16 mm
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

This popular surface mount equivalent JEDEC registered switching/signal diodes are military qualified and available with internal metallurgical bonded construction. These small low capacitance diodes with very fast switching speeds are hermetically sealed and bonded into a “D-5B” package. They may be used in a variety of fast switching applications including computers and peripheral equipment such as magnetic cores, thin-film memories, plated-wire memories, as well as decoding or encoding applications, etc. Microsemi also offers a variety of other switching/signal diodes.
