JANTX2N4091 - Microsemi

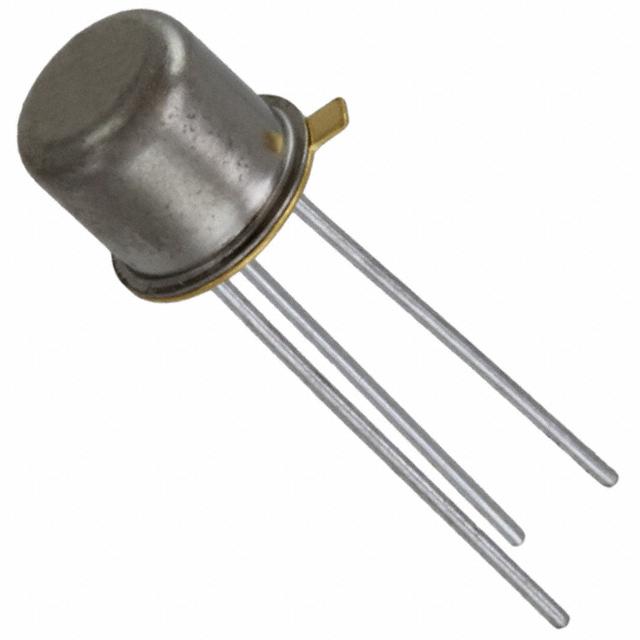

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

JANTX2N4091
Manufacturer

Microsemi
ChipWorker Part#

CW86157669
Category

JFET Transistor, JFET
Package

TO-206
Description

Trans JFET N-CH 40V 30mA 3Pin TO-18

JANTX2N4091 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

JANTX2N4091 Specifications

Attribute	Attribute Value

Part Number	JANTX2N4091
Manufacturer	Microsemi
ChipWorker Part#	CW86157669
Category	JFET Transistor, JFET
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-206
Drain to Source Resistance (on) (Rds)	30 Ω
Power Dissipation	360 mW
Drain to Source Voltage (Vds)	40 V
Reverse Breakdown Voltage	40 V
Input Capacitance (Ciss)	16pF @20V(Vds)
Input Power (Max)	360 mW
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	360 mW
	expand all
Operating Temperature	-65℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	Non-Compliant
Lead-Free Status	Contains Lead

Product Description

JFET N-Channel 40V 360mW Through Hole TO-18
