K2200GRP - Littelfuse

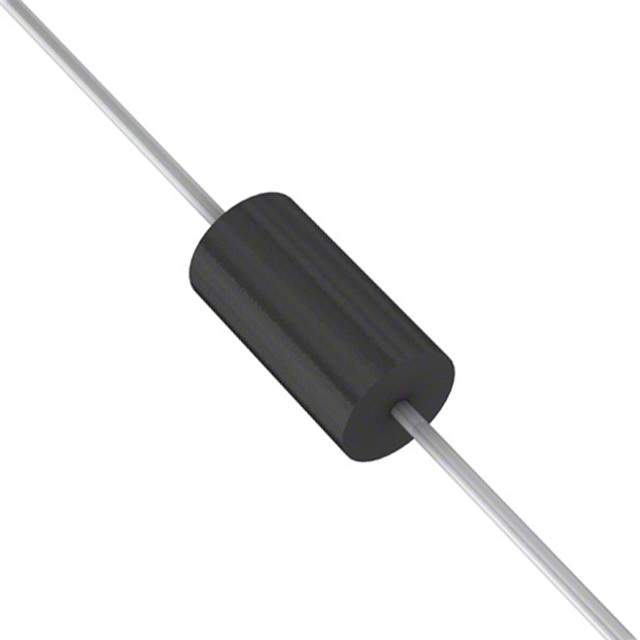

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

K2200GRP
Manufacturer

Littelfuse
ChipWorker Part#

CW31134887
Category

DIAC Diode, DIAC
Package

DO-15X-2
Description

Thyristor Surge Protection Devices 180V 20A 2Pin DO-15 T/R
Documentation

Datasheet

K2200GRP Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

K2200GRP Specifications

Attribute	Attribute Value

Part Number	K2200GRP
Manufacturer	Littelfuse
ChipWorker Part#	CW31134887
Category	DIAC Diode, DIAC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-15X-2
Current Rating	1.00 A
Holding Current (Max)	150 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free

Product Description

Description
The SIDAC is a silicon bilateral voltage triggered switch. Upon application of a voltage exceeding the SIDAC breakover voltage point, the SIDAC switches on through a negative resistance region to a low on-state voltage. Conduction continues until the current is interrupted or drops below the minimum holding current of the device. SIDACs feature glass-passivated junctions to ensure a rugged and dependable device capable of withstanding harsh environments.
Features
• AC Circuit Oriented
• Triggering Voltage of 79V to 330V
• RoHS Compliant
Applications
Suitable for high voltage power supplies, natural gas igniters, high-pressure Sodium lamps, and Xenon flash ignition.
