KSA1015YTA - ON Semiconductor

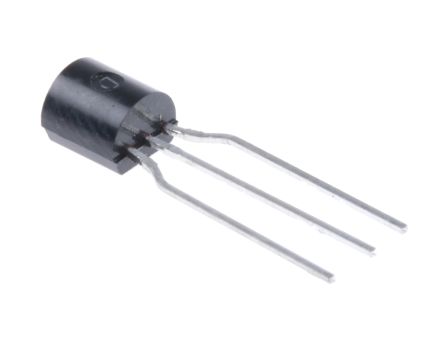

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

KSA1015YTA
Manufacturer

ON Semiconductor
ChipWorker Part#

CW25393606
Category

BJT Transistor, BJT
Package

TO-226-3
Description

Trans GP BJT PNP 50V 0.15A 400mW 3Pin TO-92 Fan-Fold
Documentation

Datasheet

KSA1015YTA Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

KSA1015YTA Specifications

Attribute	Attribute Value

Part Number	KSA1015YTA
Manufacturer	ON Semiconductor
ChipWorker Part#	CW25393606
Category	BJT Transistor, BJT
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Frequency	80 MHz
Number of Positions	3 Position
Power Dissipation	400 mW
Breakdown Voltage (Collector to Emitter)	50 V
hFE Min	120 @2mA, 6V
Input Power (Max)	400 mW
DC Current Gain (hFE)	200
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	400 mW
	expand all
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2017/07/07
ECCN Code	EAR99

Product Description

The KSA1015YTA is a PNP Epitaxial Silicon Transistor offers -50V low base voltage VCBO and -150mA collector current.
Low frequency amplifier
Complementary to KSC1815
