L0805C470MDWIT - KEMET Corporation

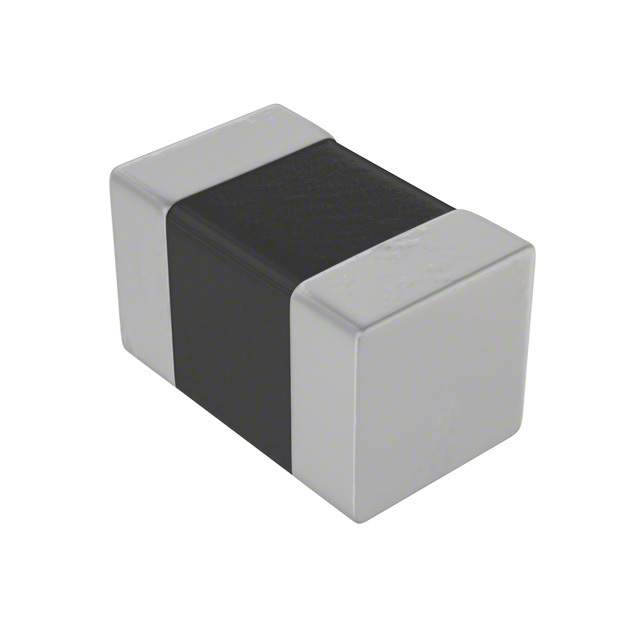

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

L0805C470MDWIT
Manufacturer

KEMET Corporation
ChipWorker Part#

CW38923689
Category

Inductor Surface Mount
Package

0805
Description

0805 47uH ±20% 150mA
Documentation

Datasheet

L0805C470MDWIT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

L0805C470MDWIT Specifications

Attribute	Attribute Value

Part Number	L0805C470MDWIT
Manufacturer	KEMET Corporation
ChipWorker Part#	CW38923689
Category	Inductor Surface Mount
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package (SI)	2012
Case/Package	0805
Current Rating	120 mA
Capacitance Tolerance	±20 %
Inductance	47 µH
Self Resonant Frequency	11 MHz
Resistance	5.80 Ω
Resonant Frequency	11.0 MHz
Inductance Tolerance	±20 %
Test Frequency	2.52 MHz
DC Resistance (DCR)	5.8 Ω
Current Rating (DC)	150 mA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-25 ℃
Resistance (DC Max)	5.8 Ω
	expand all
Size-Length	2 mm
Size-Width	1.25 mm
Size-Height	1.25 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99

Product Description

KEMET, L-DWI, Power, 47 uH, 20%
