L4004L3 - Littelfuse

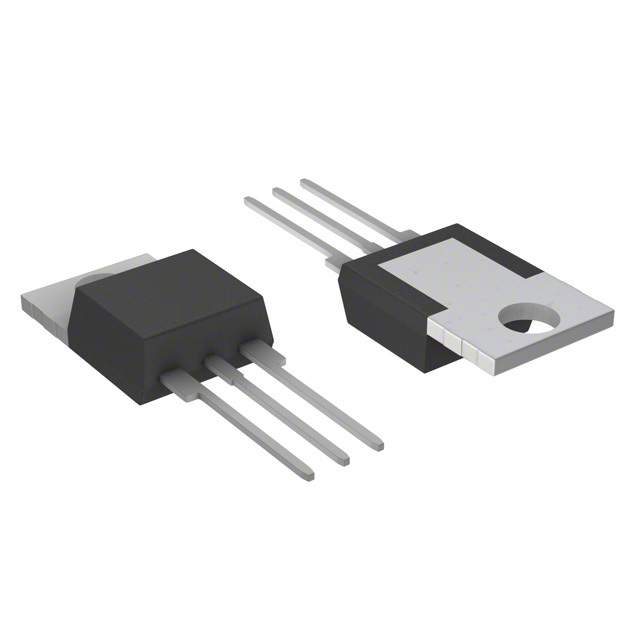

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

L4004L3
Manufacturer

Littelfuse
ChipWorker Part#

CW52180548
Category

TRIAC Diode, TRIAC
Package

TO-220-3
Description

LITTELFUSE L4004L3 Triac, 400V, 4A, TO-220, 3mA, 1.3V, 300mW
Documentation

Datasheet

L4004L3 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

L4004L3 Specifications

Attribute	Attribute Value

Part Number	L4004L3
Manufacturer	Littelfuse
ChipWorker Part#	CW52180548
Category	TRIAC Diode, TRIAC
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	400 V
Current Rating	4.00 A
Holding Current	5 mA
Holding Current (Max)	5 mA
Operating Temperature (Max)	110 ℃
Operating Temperature (Min)	-40 ℃
	expand all
Operating Temperature	-40℃ ~ 110℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99

Product Description

Using a current trigger will turn this triac L4004L3 thyristor manufactured from Littelfuse on and applying a forward-biased voltage to it will keep it on. This device has a surge current rating of 40 A. Its repetitive peak forward blocking voltage is 400 V, while its repetitive peak reverse voltage is 400 V. This SCR thyristor has a minimum operating temperature of -40 °C and a maximum of 110 °C.
