L78L05ACZTR - ST Microelectronics

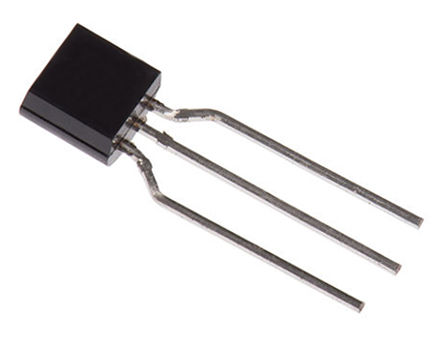

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

L78L05ACZTR
Manufacturer

ST Microelectronics
ChipWorker Part#

CW2656393
Category

Voltage Regulator
Package

TO-226-3
Description

STMicroelectronics L78Lxx L78L05ACZTR, Single Linear Voltage Regulator, 100mA 5V, 5%, 3Pin TO-92
Documentation

Datasheet

L78L05ACZTR Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

L78L05ACZTR Specifications

Attribute	Attribute Value

Part Number	L78L05ACZTR
Manufacturer	ST Microelectronics
ChipWorker Part#	CW2656393
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Number of Outputs	1 Output
Input Voltage (DC)	20.0V (max)
Output Voltage	5 V
Output Current	100 mA
Supply Current	5.5mA ~ 6mA
Number of Positions	3 Position
Quiescent Current	6 mA
voltage rating	1.7V @40mA
Input Voltage (Max)	30 V
Input Voltage (Min)	7 V
Output Voltage (Min)	5 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±4 %
Input Voltage	30 V
	expand all
Size-Length	4.95 mm
Size-Width	3.94 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99

Product Description

This three-terminal positive regulator employs internal current limiting and thermal shutdown, making it essentially indestructible. If adequate heat-sink is provided, it can deliver up to 100 mA output current. It is intended as fixed voltage regulator in a wide range of applications including local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, it can be used with power pass elements to make high-current voltage regulators.
