L78M12CDT - ST Microelectronics

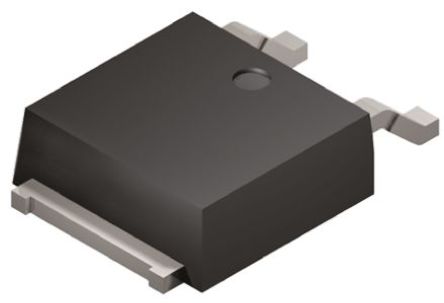

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

L78M12CDT
Manufacturer

ST Microelectronics
ChipWorker Part#

CW57932800
Category

Voltage Regulator
Package

TO-252-2
Description

Standard Regulator Pos 12V 0.5A 3Pin(2+Tab) DPAK
Documentation

Datasheet

L78M12CDT Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

L78M12CDT Specifications

Attribute	Attribute Value

Part Number	L78M12CDT
Manufacturer	ST Microelectronics
ChipWorker Part#	CW57932800
Category	Voltage Regulator
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-2
Number of Outputs	1 Output
Output Voltage	12 V
Output Current	500 mA, 500 mA (max)
Quiescent Current	6 mA
voltage rating	2V @350mA
Input Voltage (Max)	35 V
Output Current (Max)	500 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	0 ℃
	expand all
Size-Length	6.6 mm
Size-Width	6.2 mm
Size-Height	2.4 mm
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC

Product Description

DESCRIPTION
The L78M00 series of three-terminal positive regulators is available in TO-220, TO-220FP,
DPAK and IPAK packages and with several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution
problems associated with single point regulation. Each type employs internal current limiting,
thermal shut-down and safe area protection, making it essentially indestructible. If adequate
heat sinking is provided, they can deliver over 0.5A output current. Although designed primarily
as fixed voltage regulators, these devices can be used with external components to obtain
adjustable voltage and currents.
■ OUTPUT CURRENT TO 0.5A
■ OUTPUT VOLTAGES OF 5; 6; 8; 9; 12; 15; 18; 20; 24V
■ THERMAL OVERLOAD PROTECTION
■ SHORT CIRCUIT PROTECTION
■ OUTPUT TRANSITION SOA PROTECTION
