L9958SB - ST Microelectronics

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

L9958SB
Manufacturer

ST Microelectronics
ChipWorker Part#

CW66436630
Category

Motor Driver
Package

PowerBSOP-16
Description

STMICROELECTRONICS L9958SB Motor Driver, Half Bridge, 4.5V to 5.5V supply, 8.6A/1 Output, PowerSO-16
Documentation

Datasheet

L9958SB Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

L9958SB Specifications

Attribute	Attribute Value

Part Number	L9958SB
Manufacturer	ST Microelectronics
ChipWorker Part#	CW66436630
Category	Motor Driver
Documentation	Datasheet
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	PowerBSOP-16
Supply Voltage (DC)	4.50V (min)
Number of Outputs	1 Output
Output Current	8.6 A
Supply Current	35 A
Number of Positions	16 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	expand all
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99

Product Description

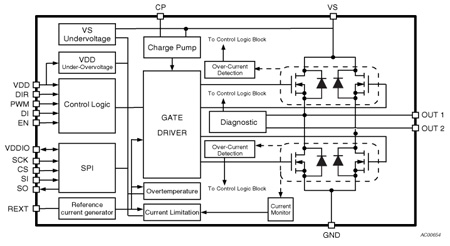

The L9958SB is a SPI-controlled H-bridge Driver designed for the control of DC and stepper motors in safety critical applications and under extreme environmental conditions. The H-bridge is protected against over-temperature, short-circuits and has an under-voltage lockout for all the supply voltages Vs and Vdd and for over-voltage on Vdd. All malfunctions causes the output stages to go tristate. Detailed failure diagnostics on each channel is provided via SPI - short-circuit to battery, short-circuit to ground, short-circuit overload, over-temperature. Open-load can be detected in on condition, for the widest application ranges. Current regulation threshold can be set by SPI from 2.5 to 8.6A (typical), in 4 steps. Guaranteed accuracy is ±10% on all temperature range, using an external reference resistor with 1% accuracy over all temp range. Current limitation threshold is linearly reduced by temperature over 165°C and a thermal warning bit is set by SPI.
All pins withstand 19V, Vs and output pins withstand 40V
Full path Ron from 100 (at Tj=-40°C) to 300mR (at Tj=150°C)
Logic inputs TTL/CMOS-compatible
Operating frequency up to 20kHz
16-bit SPI interface for configuration/diagnostics, daisy chain capability
Over-temperature and short-circuit protection
VS under-voltage disable function
VDD under-voltage and over-voltage protection
VDD over-voltage detection
Open-load detection in on condition
Full diagnostics in OFF-state
Enable and disable input
Low standby current (<10µA)
Voltage and current slew-rate control for low EMI, programmable through SPI
4 to 28V Operating battery supply voltage
