LC1D098P7 - Schneider Electric

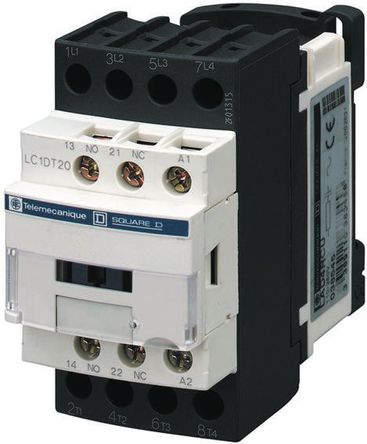

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LC1D098P7
Manufacturer

Schneider Electric
ChipWorker Part#

CW186762454
Category

Industrial Relay
Description

SCHNEIDER ELECTRIC / TELEMECANIQUE LC1D098P7 Contactor, 230VAC, 4Pole, 2NO / 2NC, DIN Rail, 20A, 230V
Documentation

Datasheet

LC1D098P7 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LC1D098P7 Specifications

Attribute	Attribute Value

Part Number	LC1D098P7
Manufacturer	Schneider Electric
ChipWorker Part#	CW186762454
Category	Industrial Relay
Documentation	Datasheet
Mounting Style	DIN Rail
Operating Voltage	230 VAC
Contact Current Rating	20 A
Coil Voltage	230 VAC
Coil Voltage (AC)	230 V
Coil Voltage (DC)	110 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-5 ℃
	expand all
Size-Length	85 mm
Size-Width	45 mm
RoHS	Non-Compliant
REACH SVHC Compliance	No SVHC

Product Description

The LC1D098P7 is a 4-pole TeSys D Contactor with AC coil. 2NO-2NC power pole contact composition. 1NO-1NC auxiliary contact composition with safety cover. Without built-in suppressor module. Type mirror contact (1NC) conforming to IEC 60947-4-1, type mechanically linked (1NO-1NC) conforming to IEC 60947-5-1. TeSys D contactor offers quick simple setup, while maintaining a compact size of 45 and 55mm (40 to 65A) as well as compliance with international standards. From 40 to 65A versions are equipped with EverLink, this new patented terminal technology, assures a permanent tightening quality even in the event of conductor creep.
Resistive load contactor application
1.56W AC-1 power dissipation
