LC1D115G7 - Schneider Electric

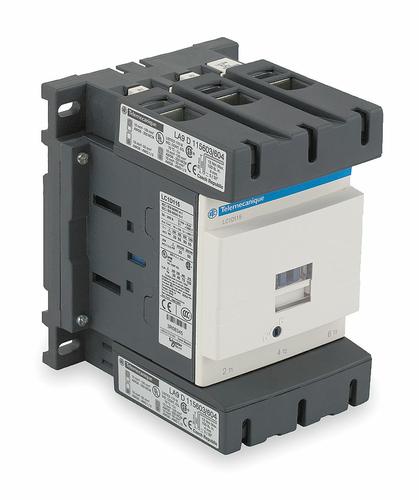

The pictures are for reference only, and the specific specifications can be found in the product manual.

Part No

LC1D115G7
Manufacturer

Schneider Electric
ChipWorker Part#

CW204070958
Description

Contactor, IEC, 600VAC, 115A, 3Pole, 120VAC Coil, DIN Rail, TeSys D
Documentation

Datasheet

LC1D115G7 Global Supplier

{{ supplierTable.supplier }}	{{ supplierTable.part }}	{{ supplierTable.availability }}	MOQ	{{ supplierTable.delivery_date }}

{{viewMore}}
{{viewMore}}
DigiKey	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Arrow	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
Mouser	{{noList.partNo}} {{noList.mfr}}	0 {{ search_item }}	-	{{outStock}}
					{{submitRFQ}}

LC1D115G7 Specifications

Attribute	Attribute Value

Part Number	LC1D115G7
Manufacturer	Schneider Electric
ChipWorker Part#	CW204070958
Documentation	Datasheet
Mounting Style	DIN Rail
Operating Voltage	1 kV
Current Rating	115 A
Power Rating	65 kW
Contacts Type	3PST-NO
Contact Current Rating	115 A
Coil Voltage (AC)	120 V
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-5 ℃
Voltage Rating	1000VAC, 300VDC
	expand all
Size-Length	158 mm
Operating Temperature	-5℃ ~ 60℃
RoHS	RoHS Compliant

Product Description

**TeSys D Series – Contactors & Reversing Contactors up to 150A for inductive motor and 250A for resistive loads:**
Reliable and long-lasting, TeSys D is the ultimate choice for demanding or wide power range applications.*TeSys D contactor** offers you quick simple setup, while maintaining a compact size of 45 (9 to 38A) and 55 mm (40 to 65 A) as well as compliance with international standards. From 40 to 65 A versions are equipped with EverLink, this patented terminal technology, ENSURES a permanent tightening quality even in the event of conductor creep.
**Features:**
* The TeSys D contactors is the largest selling line of contactors in the world. They offer multi-standard compact solution, high reliability with long mechanical and electrical life and the most complete line of accessories in the industry. TeSys D contactors is the perfect choice for any applications.
* TeSys D contactors leverage on 100 years of experience and innovation to control your motors.
* New TeSys D Green increase TeSys D range with a new electronic coil with up to 80% less consumption than TeSys D standard AC or DC coil.
* TeSys D Green contactor simplify your maintenance services with 90% less references needed.
* TeSys D Green contactor associated with TeSys LR9D electronic overload relay reduces heat generation and energy consumption up to 50%
**Safety:**
* Safe and long-lasting power connection with Everlink and spring terminals
* Suitable for safety applications thanks to mechanically linked and mirror contacts (compliant with IEC 60947-4-1 and 60947-5-1 )
* Identification of safety chain with red cover and aux contact
**Efficiency:**
* Recognized high performances and quality solutions
* Outstanding breaking/making capacity up to 20In
* Multi-standard : IEC, UL, CCC, EAC, Marine, etc.
**Continuity of Service:**
* Certified type 1 and 2 coordination tables
* Worldwide availability of products and after sales services
**PLC Direct Connection:**
* TeSys D is the only contactor range with full compatibility with PLC input/output from 9A to 65A.
* TeSys D low consumption DC coil (BL references) uses only 100mA inrush and sealed from 9 to 38A –
* New TeSys D Green (BBE coil references) is compatible with digital I/O
